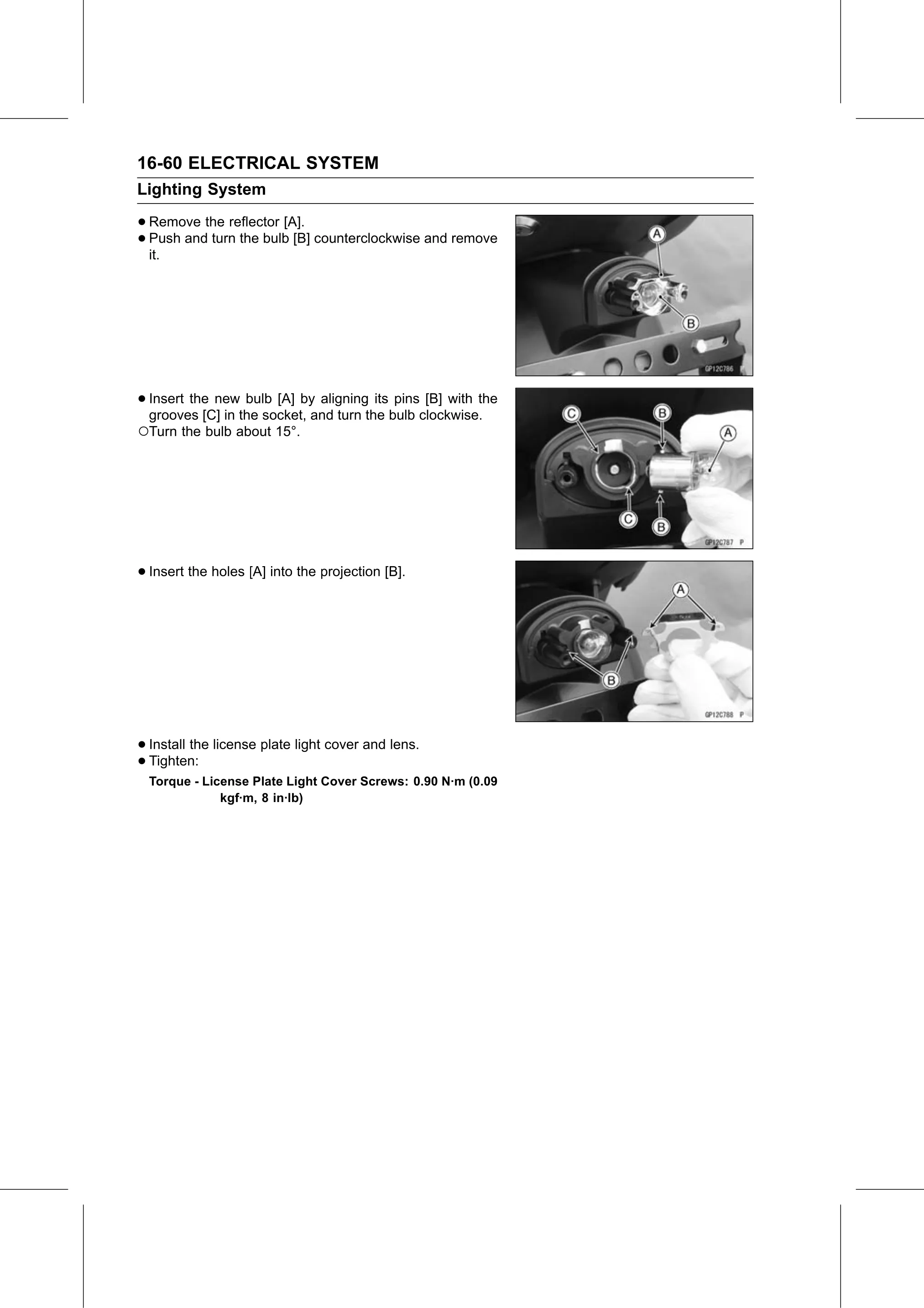

16-60 ELECTRICAL SYSTEM
Lighting System

• Remove  the reflector [A].
• it.
  Push and turn the bulb [B] counterclockwise and remove

• Insert the new bulb [A] by aligning its pins [B] with the
  grooves [C] in the socket, and turn the bulb clockwise.
○Turn the bulb about 15°.

• Insert the holes [A] into the projection [B].

• Install the license plate light cover and lens.
• Tighten:
  Torque - License Plate Light Cover Screws: 0.90 N·m (0.09
              kgf·m, 8 in·lb)
