ELECTRICAL SYSTEM 16-61
Lighting System

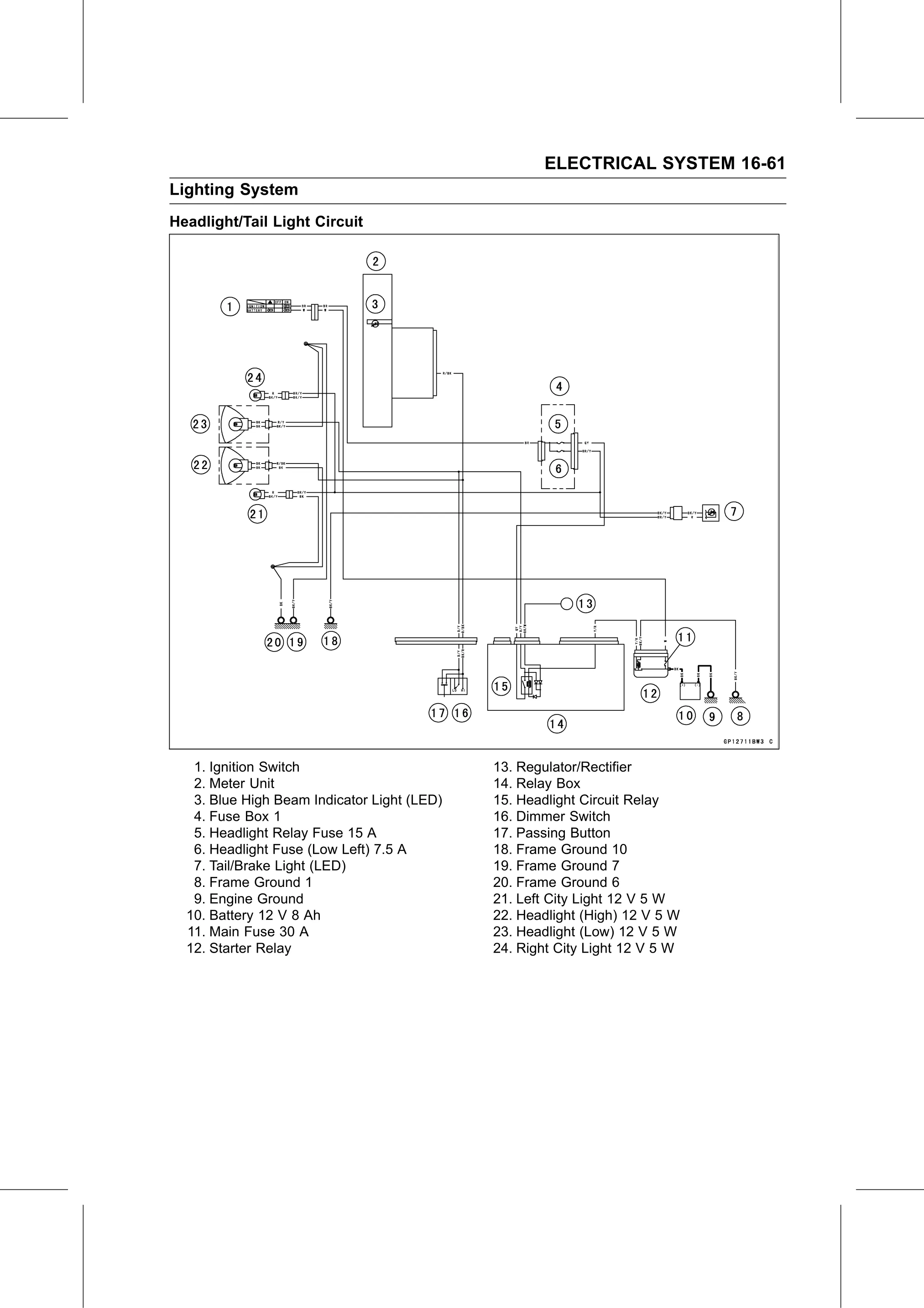

Headlight/Tail Light Circuit

   1. Ignition Switch                        13. Regulator/Rectifier
   2. Meter Unit                             14. Relay Box
   3. Blue High Beam Indicator Light (LED)   15. Headlight Circuit Relay
   4. Fuse Box 1                             16. Dimmer Switch
   5. Headlight Relay Fuse 15 A              17. Passing Button
   6. Headlight Fuse (Low Left) 7.5 A        18. Frame Ground 10
   7. Tail/Brake Light (LED)                 19. Frame Ground 7
   8. Frame Ground 1                         20. Frame Ground 6
   9. Engine Ground                          21. Left City Light 12 V 5 W
  10. Battery 12 V 8 Ah                      22. Headlight (High) 12 V 5 W
  11. Main Fuse 30 A                         23. Headlight (Low) 12 V 5 W
  12. Starter Relay                          24. Right City Light 12 V 5 W
