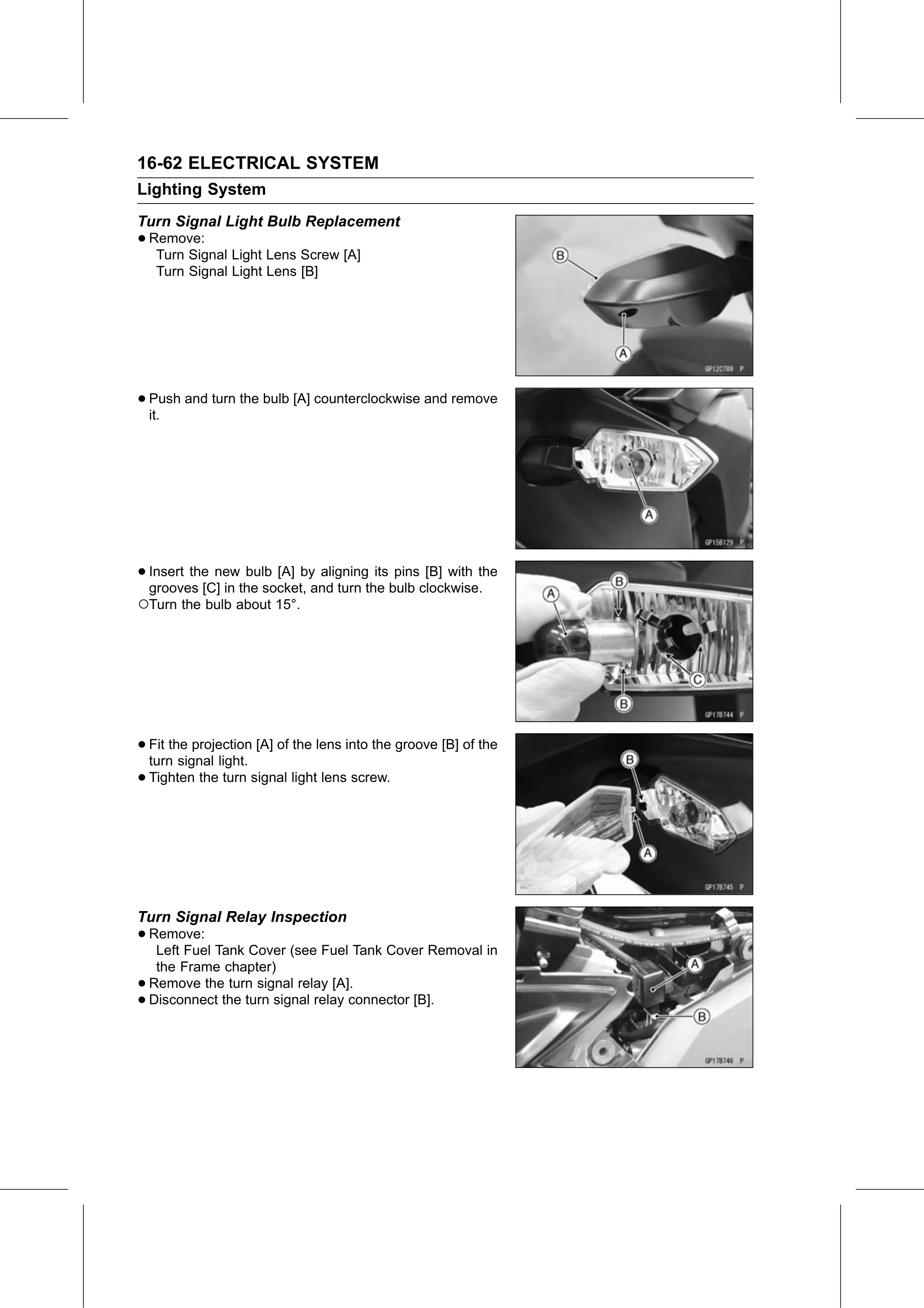

16-62 ELECTRICAL SYSTEM
Lighting System
Turn Signal Light Bulb Replacement
• Remove:
   Turn Signal Light Lens Screw [A]
     Turn Signal Light Lens [B]

• Push
  it.
       and turn the bulb [A] counterclockwise and remove

• Insert the new bulb [A] by aligning its pins [B] with the
  grooves [C] in the socket, and turn the bulb clockwise.
○Turn the bulb about 15°.

• Fit the projection [A] of the lens into the groove [B] of the
  turn signal light.
• Tighten the turn signal light lens screw.

Turn Signal Relay Inspection
• Remove:
   Left Fuel Tank Cover (see Fuel Tank Cover Removal in
     the Frame chapter)
•   Remove the turn signal relay [A].
•   Disconnect the turn signal relay connector [B].
