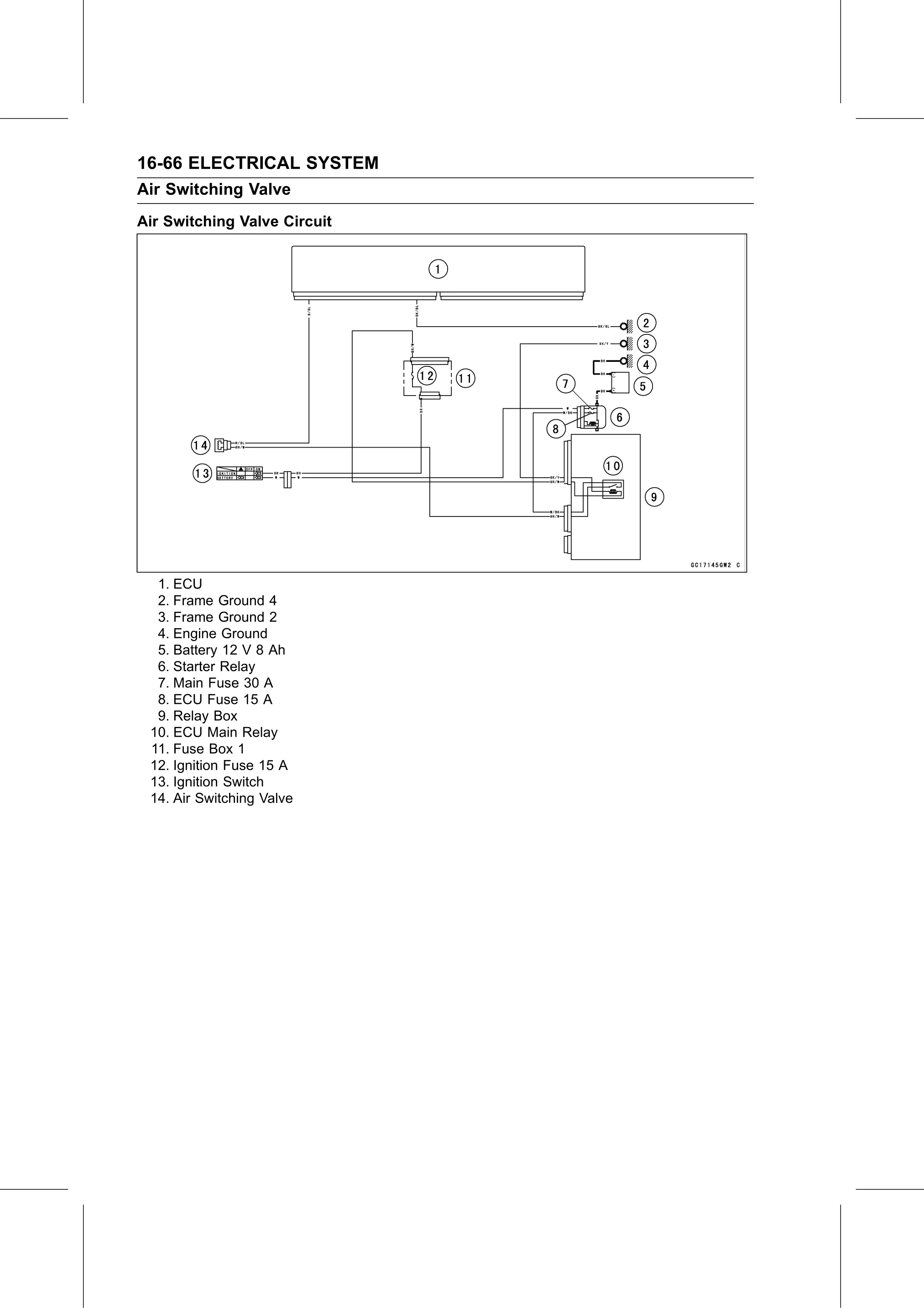

16-66 ELECTRICAL SYSTEM
Air Switching Valve
Air Switching Valve Circuit

  1. ECU
  2. Frame Ground 4
  3. Frame Ground 2
  4. Engine Ground
  5. Battery 12 V 8 Ah
  6. Starter Relay
  7. Main Fuse 30 A
  8. ECU Fuse 15 A
  9. Relay Box
 10. ECU Main Relay
 11. Fuse Box 1
 12. Ignition Fuse 15 A
 13. Ignition Switch
 14. Air Switching Valve
