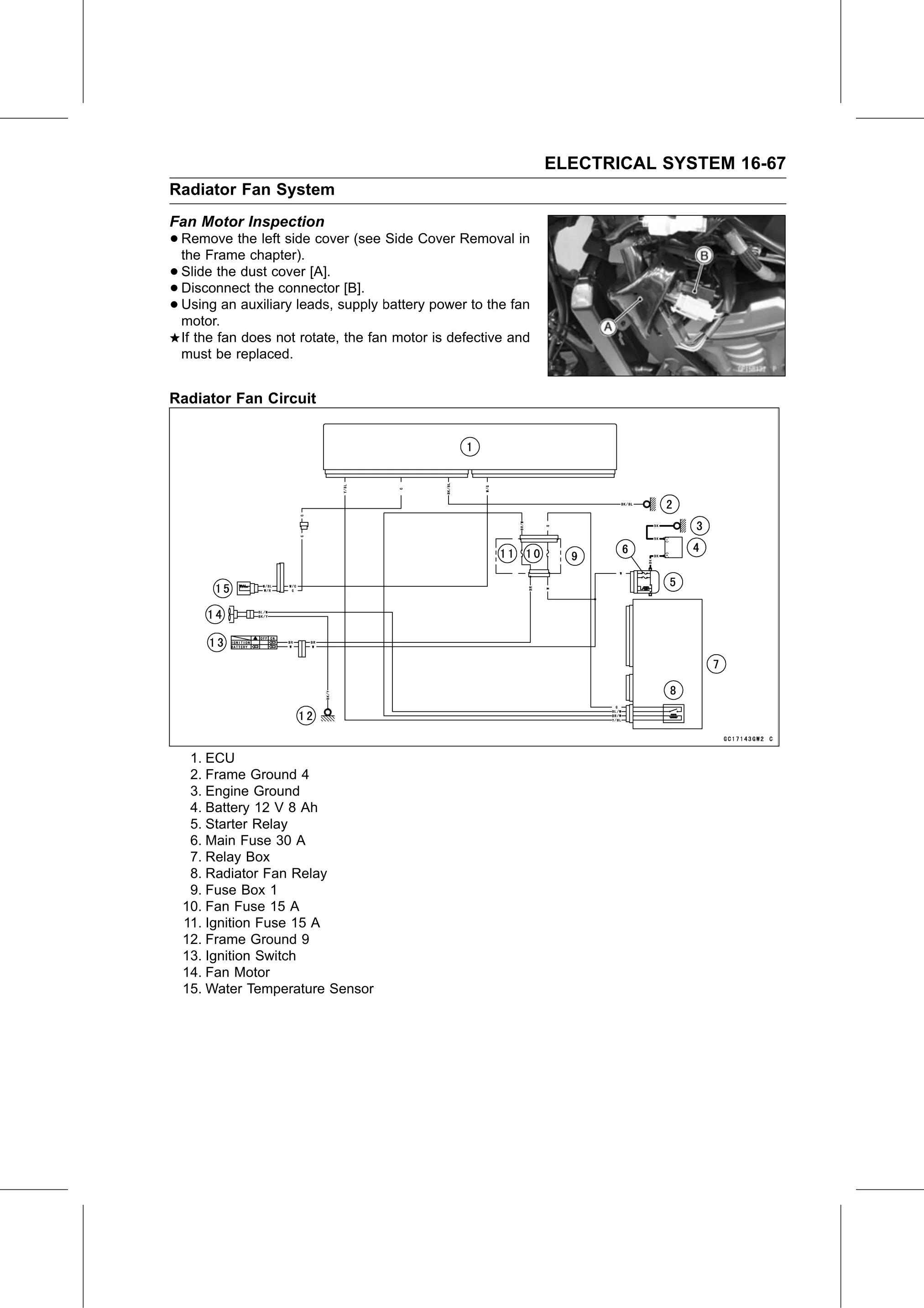

ELECTRICAL SYSTEM 16-67
Radiator Fan System
Fan Motor Inspection
• Remove   the left side cover (see Side Cover Removal in
  the Frame chapter).
• Slide the dust cover [A].
• Using an auxiliary
  Disconnect  the connector [B].
• motor.              leads, supply battery power to the fan

 If the fan does not rotate, the fan motor is defective and
 must be replaced.

Radiator Fan Circuit

   1. ECU
   2. Frame Ground 4
   3. Engine Ground
   4. Battery 12 V 8 Ah
   5. Starter Relay
   6. Main Fuse 30 A
   7. Relay Box
   8. Radiator Fan Relay
   9. Fuse Box 1
  10. Fan Fuse 15 A
  11. Ignition Fuse 15 A
  12. Frame Ground 9
  13. Ignition Switch
  14. Fan Motor
  15. Water Temperature Sensor
