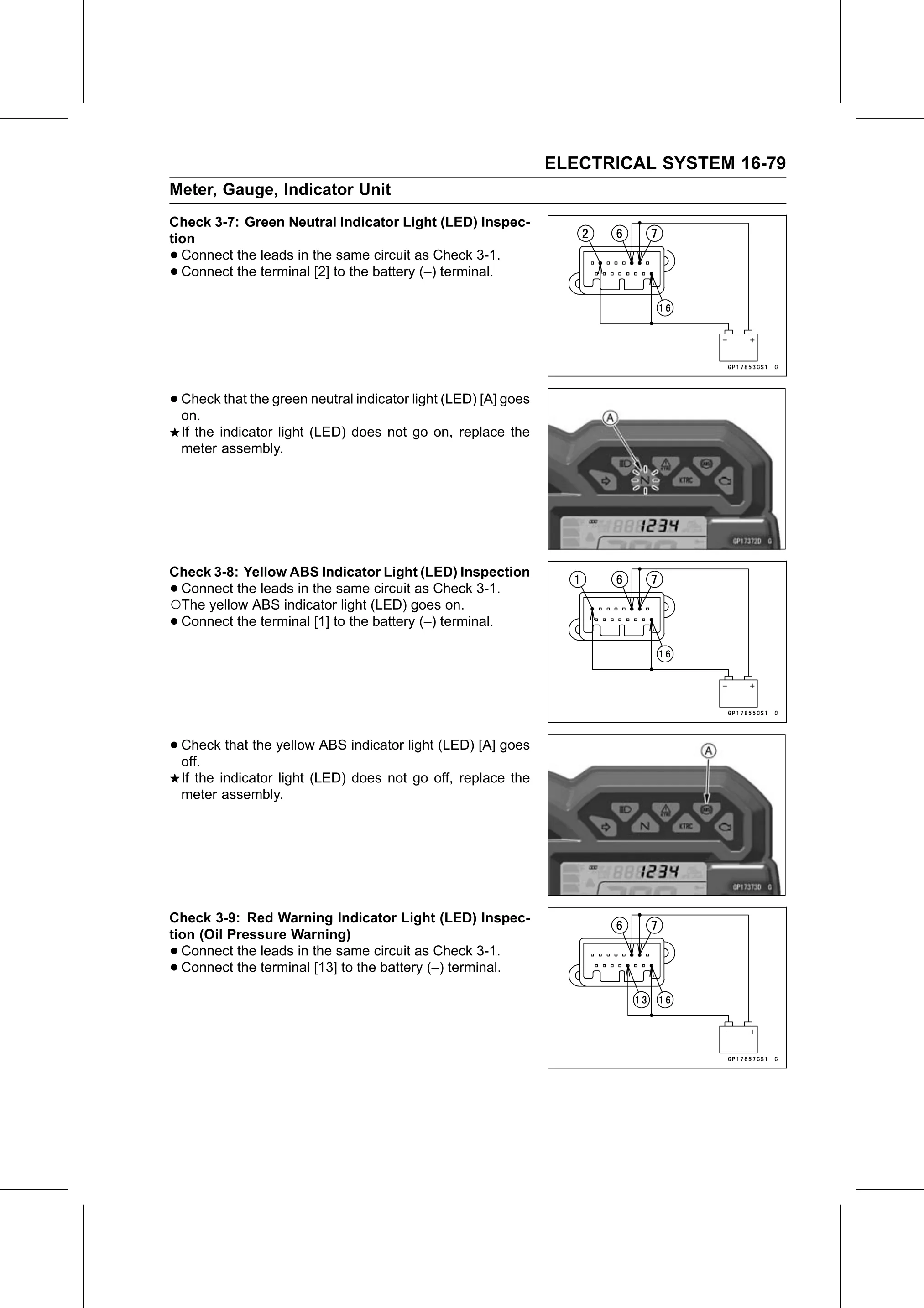

ELECTRICAL SYSTEM 16-79
Meter, Gauge, Indicator Unit
Check 3-7: Green Neutral Indicator Light (LED) Inspec-
tion
• Connect the leads in the same circuit as Check 3-1.
• Connect the terminal [2] to the battery (–) terminal.

• Check
  on.
        that the green neutral indicator light (LED) [A] goes

    If the indicator light (LED) does not go on, replace the
    meter assembly.

Check 3-8: Yellow ABS Indicator Light (LED) Inspection
•Connect the leads in the same circuit as Check 3-1.
○The yellow ABS indicator light (LED) goes on.
•Connect the terminal [1] to the battery (–) terminal.

• Check
  off.
        that the yellow ABS indicator light (LED) [A] goes

    If the indicator light (LED) does not go off, replace the
    meter assembly.

Check 3-9: Red Warning Indicator Light (LED) Inspec-
tion (Oil Pressure Warning)
• Connect the leads in the same circuit as Check 3-1.
• Connect the terminal [13] to the battery (–) terminal.
