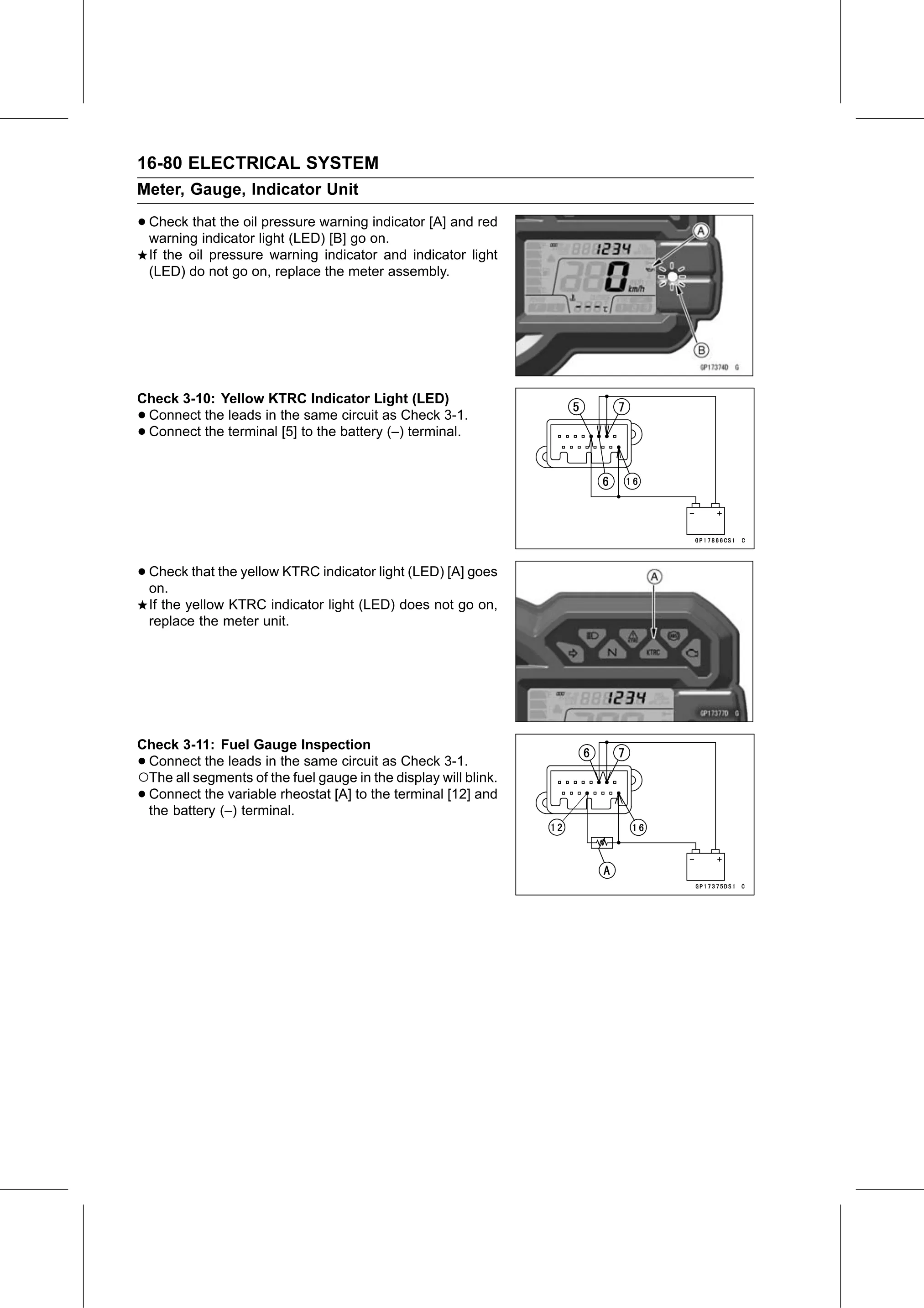

16-80 ELECTRICAL SYSTEM
Meter, Gauge, Indicator Unit

• Check that the oil pressure warning indicator [A] and red
  warning indicator light (LED) [B] go on.
    If the oil pressure warning indicator and indicator light
    (LED) do not go on, replace the meter assembly.

Check 3-10: Yellow KTRC Indicator Light (LED)
•Connect the leads in the same circuit as Check 3-1.
•Connect the terminal [5] to the battery (–) terminal.

• Check
  on.
        that the yellow KTRC indicator light (LED) [A] goes

    If the yellow KTRC indicator light (LED) does not go on,
    replace the meter unit.

Check 3-11: Fuel Gauge Inspection
•Connect the leads in the same circuit as Check 3-1.
○The all segments of the fuel gauge in the display will blink.
•Connect the variable rheostat [A] to the terminal [12] and
 the battery (–) terminal.
