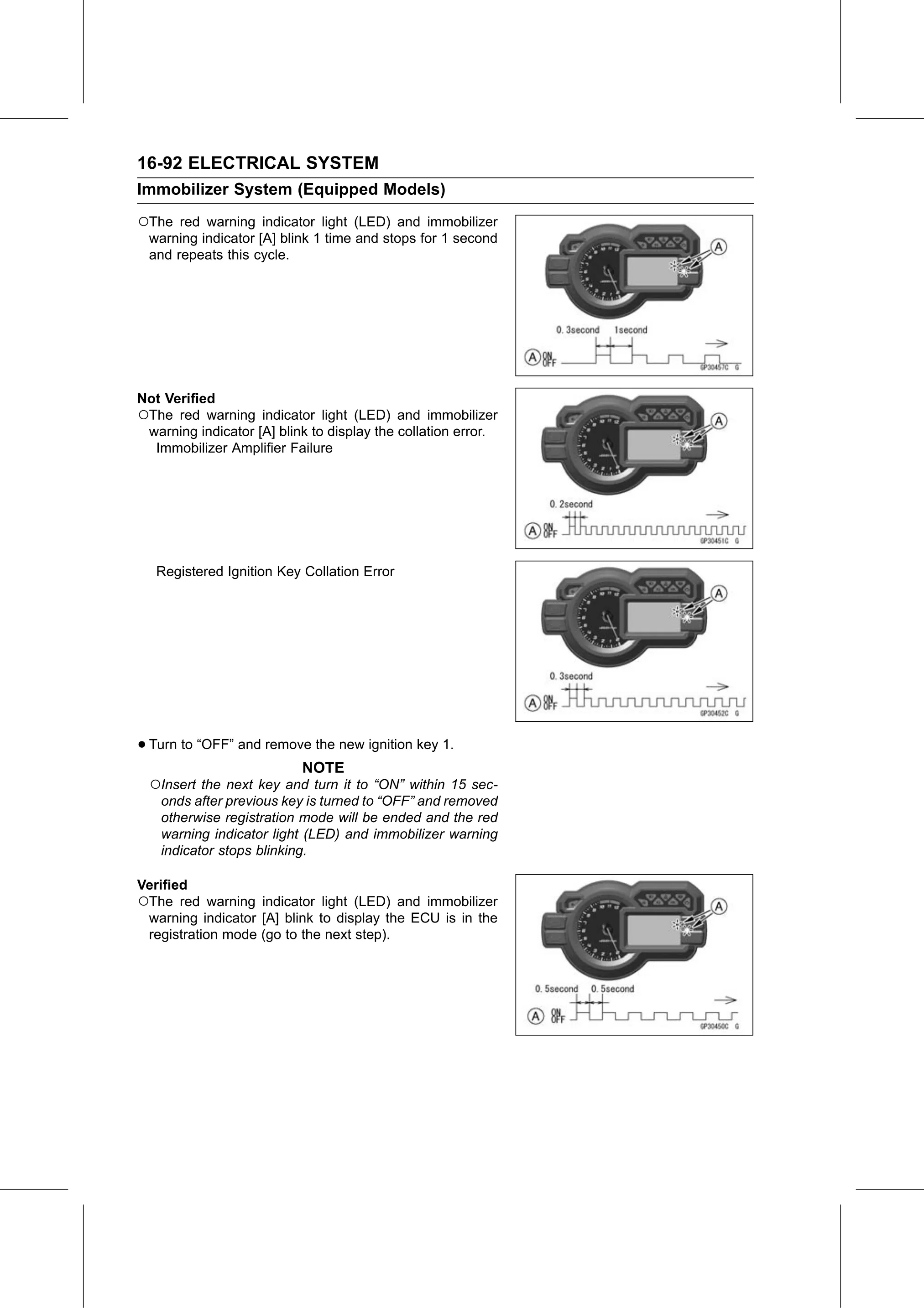

16-92 ELECTRICAL SYSTEM
Immobilizer System (Equipped Models)
○The red warning indicator light (LED) and immobilizer
 warning indicator [A] blink 1 time and stops for 1 second
 and repeats this cycle.

Not Verified
○The red warning indicator light (LED) and immobilizer
 warning indicator [A] blink to display the collation error.
  Immobilizer Amplifier Failure

   Registered Ignition Key Collation Error

• Turn to “OFF” and remove the new ignition key 1.
                           NOTE
 ○Insert the next key and turn it to “ON” within 15 sec-
   onds after previous key is turned to “OFF” and removed
   otherwise registration mode will be ended and the red
   warning indicator light (LED) and immobilizer warning
   indicator stops blinking.

Verified
○The red warning indicator light (LED) and immobilizer
 warning indicator [A] blink to display the ECU is in the
 registration mode (go to the next step).
