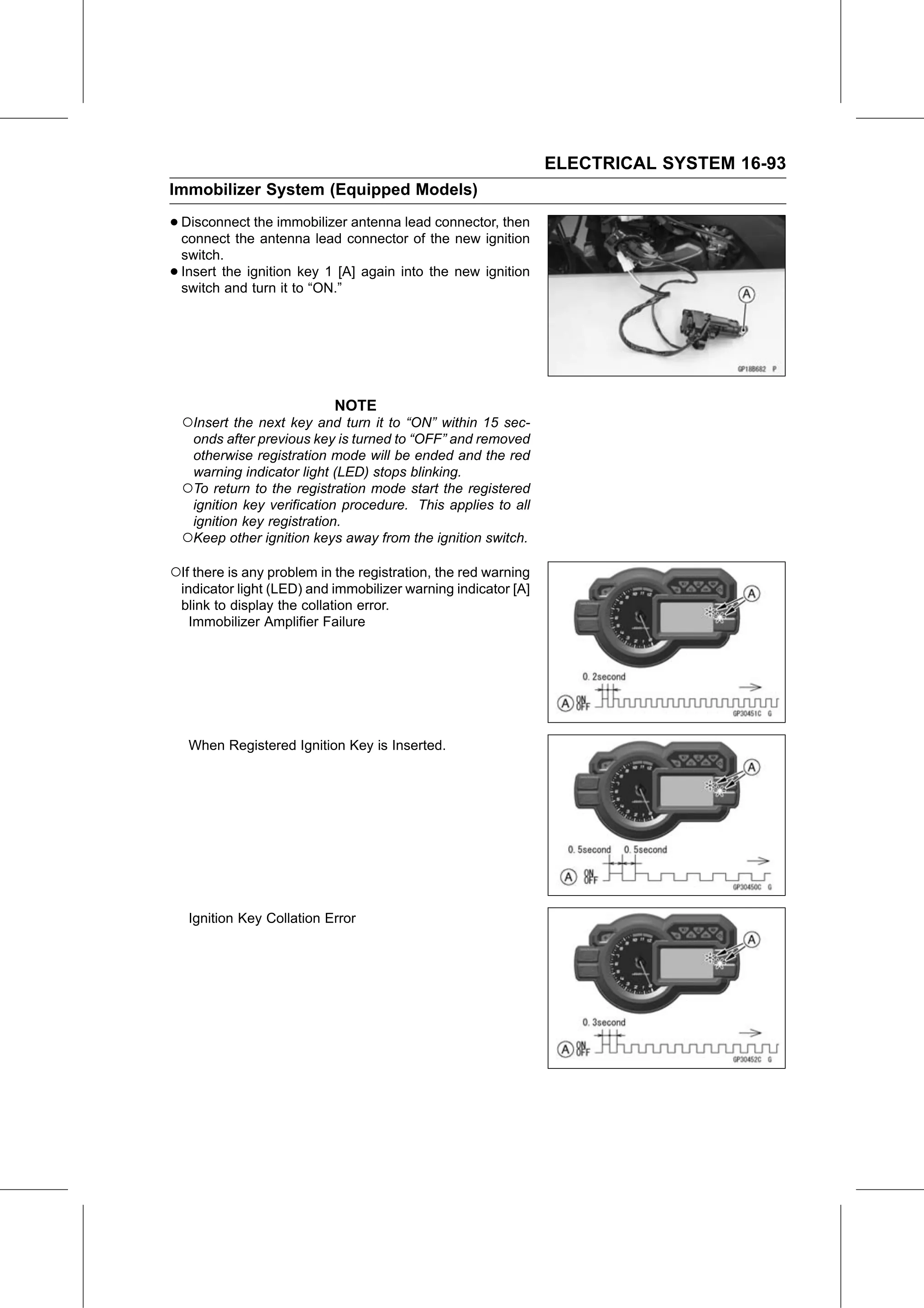

ELECTRICAL SYSTEM 16-93
Immobilizer System (Equipped Models)

• Disconnect the immobilizer antenna lead connector, then
  connect the antenna lead connector of the new ignition
    switch.
•   Insert the ignition key 1 [A] again into the new ignition
    switch and turn it to “ON.”

                             NOTE
    ○Insert the next key and turn it to “ON” within 15 sec-
     onds after previous key is turned to “OFF” and removed
     otherwise registration mode will be ended and the red
     warning indicator light (LED) stops blinking.
    ○To return to the registration mode start the registered
     ignition key verification procedure. This applies to all
     ignition key registration.
    ○Keep other ignition keys away from the ignition switch.
○If there is any problem in the registration, the red warning
    indicator light (LED) and immobilizer warning indicator [A]
    blink to display the collation error.
      Immobilizer Amplifier Failure

     When Registered Ignition Key is Inserted.

     Ignition Key Collation Error
