ELECTRICAL SYSTEM 16-111
Relay Box

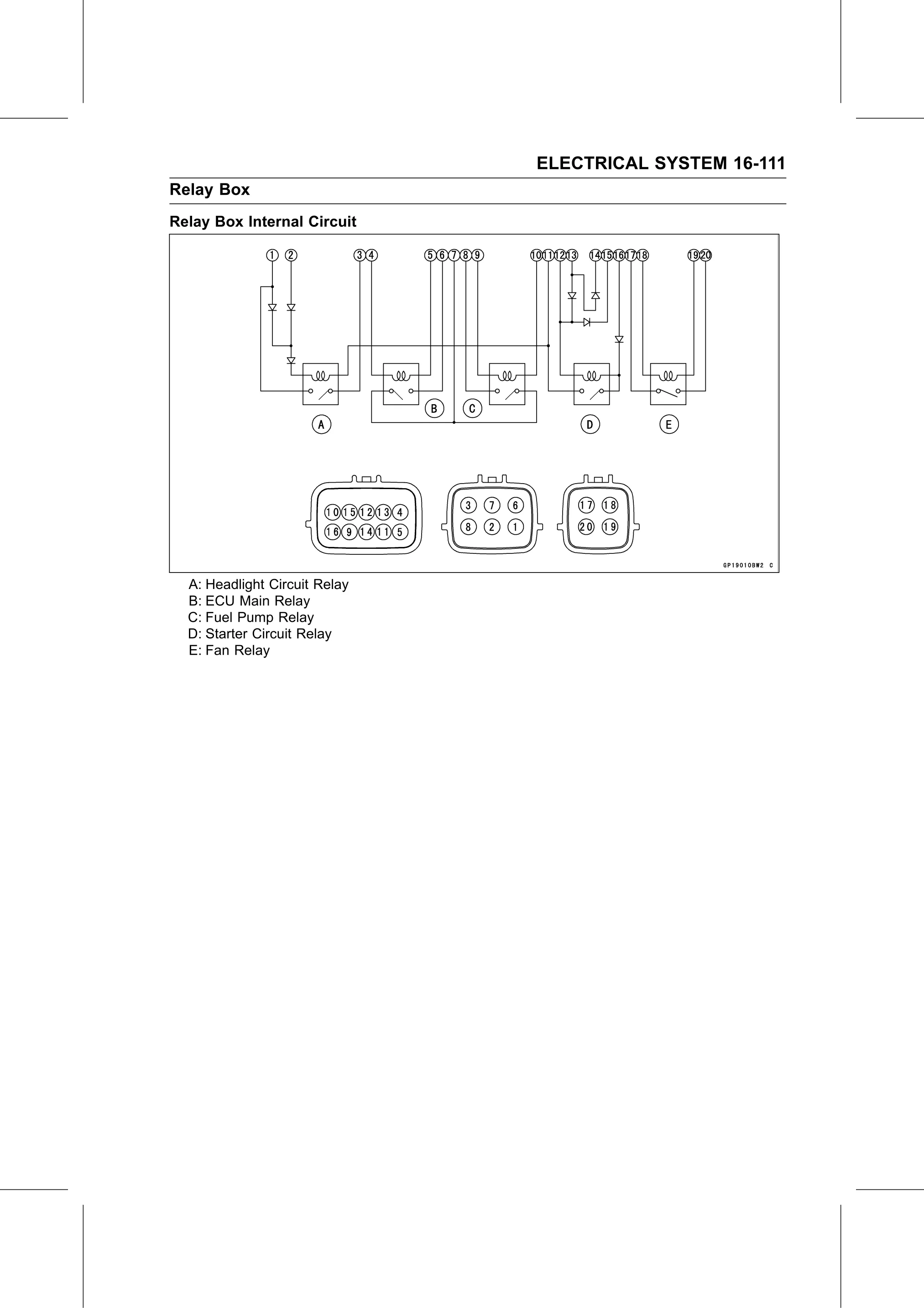

Relay Box Internal Circuit

  A: Headlight Circuit Relay
  B: ECU Main Relay
  C: Fuel Pump Relay
  D: Starter Circuit Relay
  E: Fan Relay
