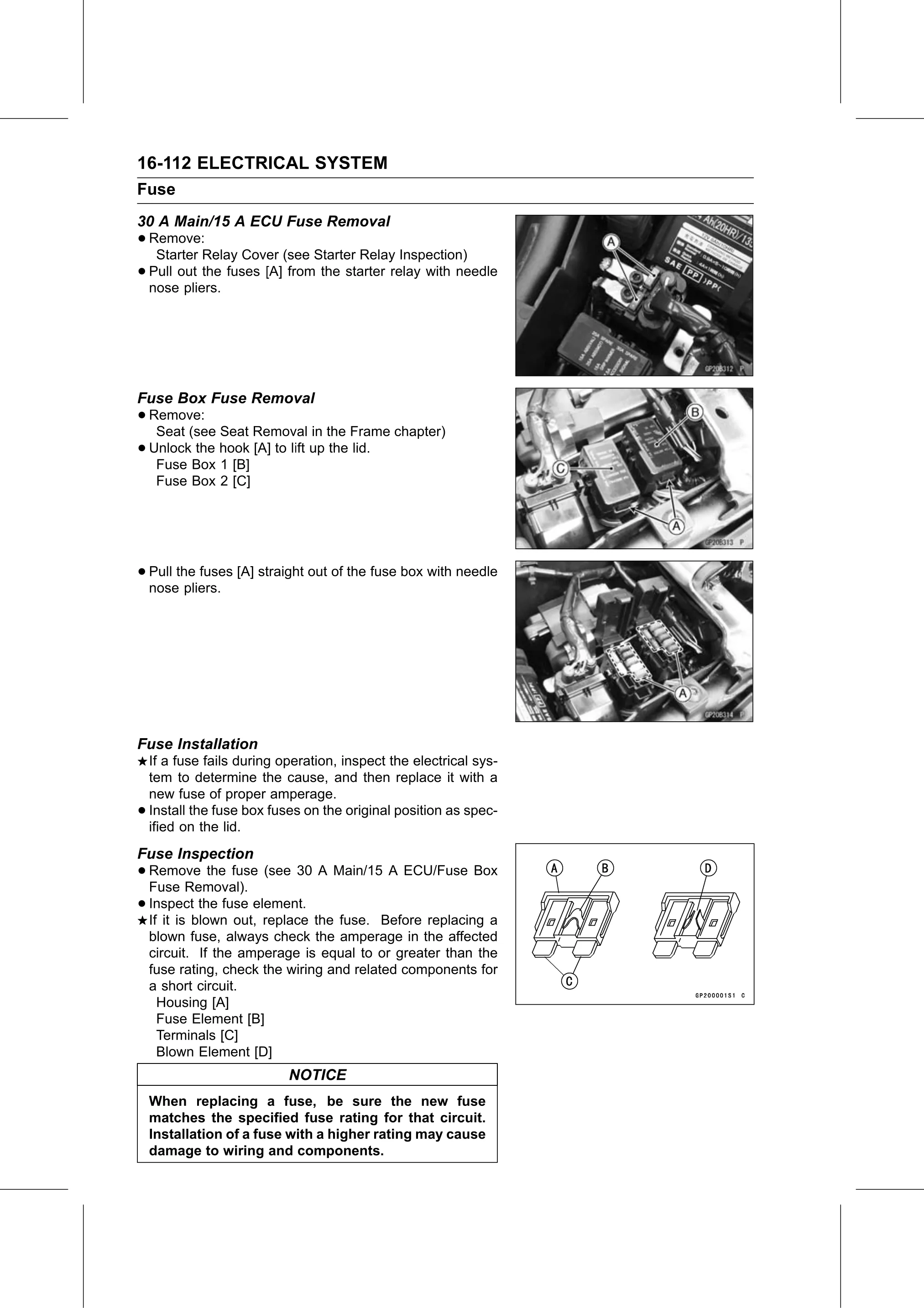

16-112 ELECTRICAL SYSTEM
Fuse
30 A Main/15 A ECU Fuse Removal
• Remove:
   Starter Relay Cover (see Starter Relay Inspection)
• noseoutpliers.
  Pull       the fuses [A] from the starter relay with needle

Fuse Box Fuse Removal
• Remove:
   Seat (see Seat Removal in the Frame chapter)
• Fuse Box
  Unlock the hook [A] to lift up the lid.
             1 [B]
     Fuse Box 2 [C]

• Pull the fuses [A] straight out of the fuse box with needle
  nose pliers.

Fuse Installation
    If a fuse fails during operation, inspect the electrical sys-
    tem to determine the cause, and then replace it with a
    new fuse of proper amperage.
•   Install the fuse box fuses on the original position as spec-
    ified on the lid.
Fuse Inspection
• Remove      the fuse (see 30 A Main/15 A ECU/Fuse Box
  Fuse Removal).
• Inspect   the fuse element.
  If it is blown out, replace the fuse. Before replacing a
    blown fuse, always check the amperage in the affected
    circuit. If the amperage is equal to or greater than the
    fuse rating, check the wiring and related components for
    a short circuit.
     Housing [A]
     Fuse Element [B]
     Terminals [C]
     Blown Element [D]
                            NOTICE
    When replacing a fuse, be sure the new fuse
    matches the specified fuse rating for that circuit.
    Installation of a fuse with a higher rating may cause
    damage to wiring and components.
