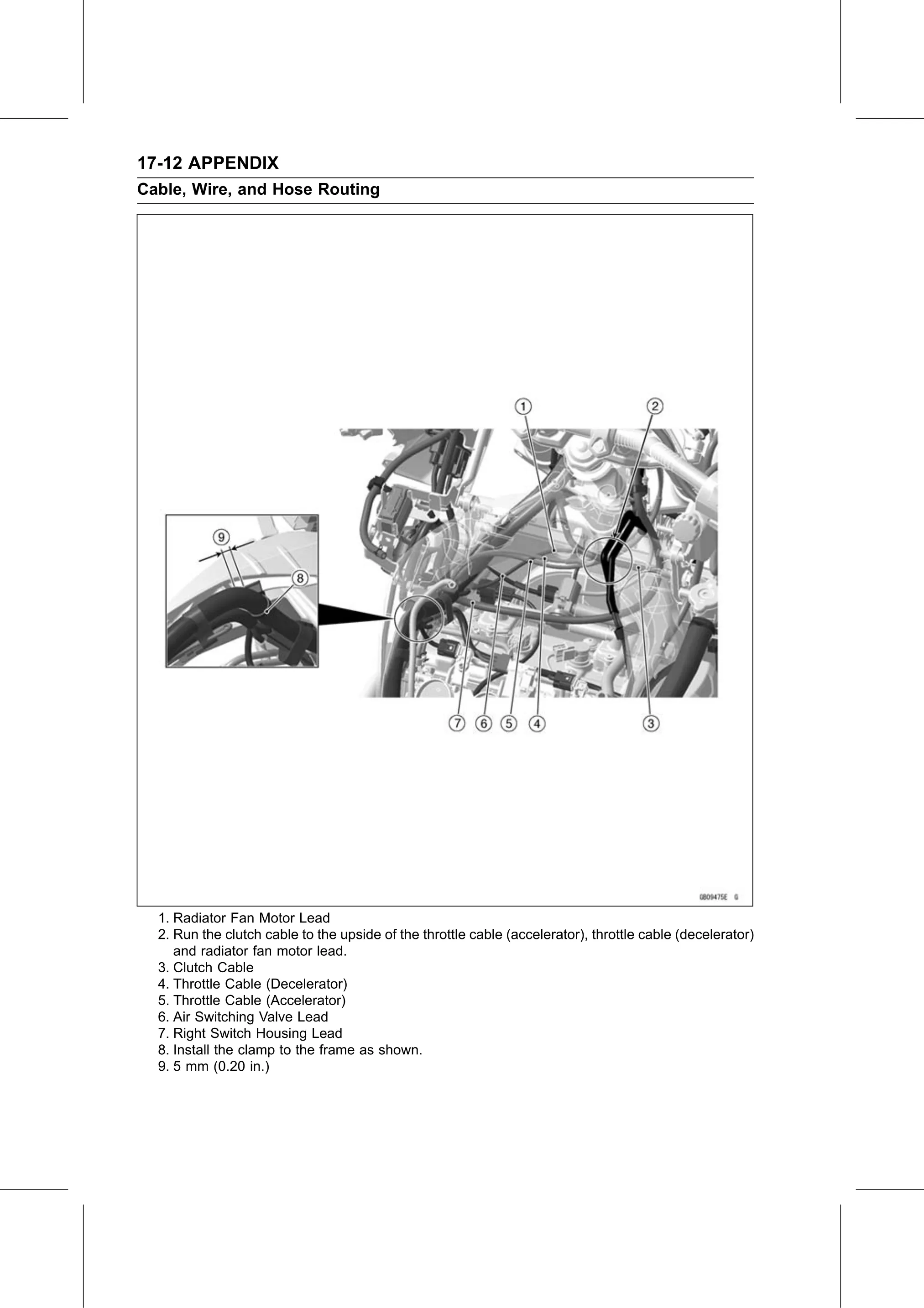

17-12 APPENDIX
Cable, Wire, and Hose Routing

  1. Radiator Fan Motor Lead
  2. Run the clutch cable to the upside of the throttle cable (accelerator), throttle cable (decelerator)
     and radiator fan motor lead.
  3. Clutch Cable
  4. Throttle Cable (Decelerator)
  5. Throttle Cable (Accelerator)
  6. Air Switching Valve Lead
  7. Right Switch Housing Lead
  8. Install the clamp to the frame as shown.
  9. 5 mm (0.20 in.)
