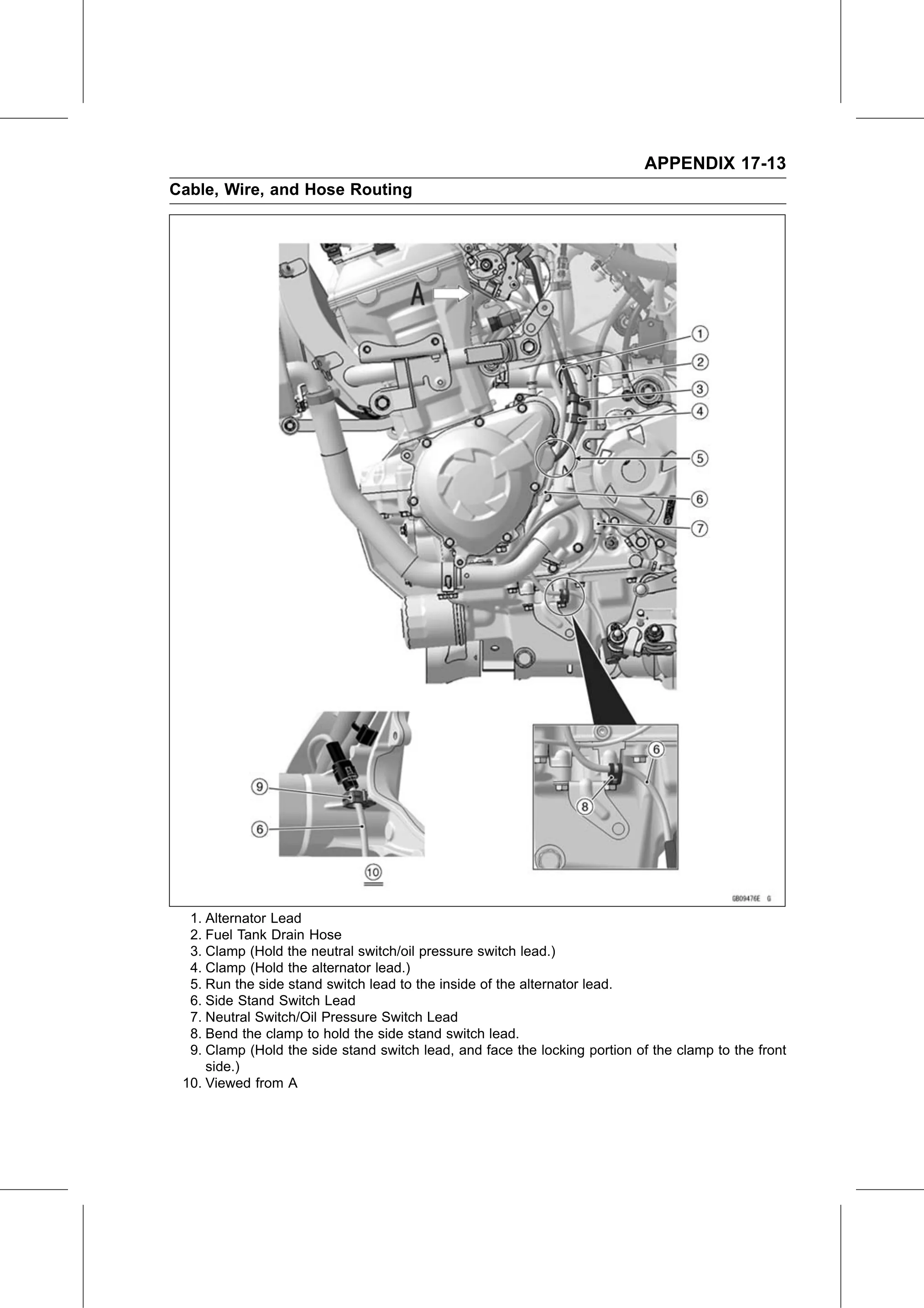

APPENDIX 17-13
Cable, Wire, and Hose Routing

  1. Alternator Lead
  2. Fuel Tank Drain Hose
  3. Clamp (Hold the neutral switch/oil pressure switch lead.)
  4. Clamp (Hold the alternator lead.)
  5. Run the side stand switch lead to the inside of the alternator lead.
  6. Side Stand Switch Lead
  7. Neutral Switch/Oil Pressure Switch Lead
  8. Bend the clamp to hold the side stand switch lead.
  9. Clamp (Hold the side stand switch lead, and face the locking portion of the clamp to the front
     side.)
 10. Viewed from A
