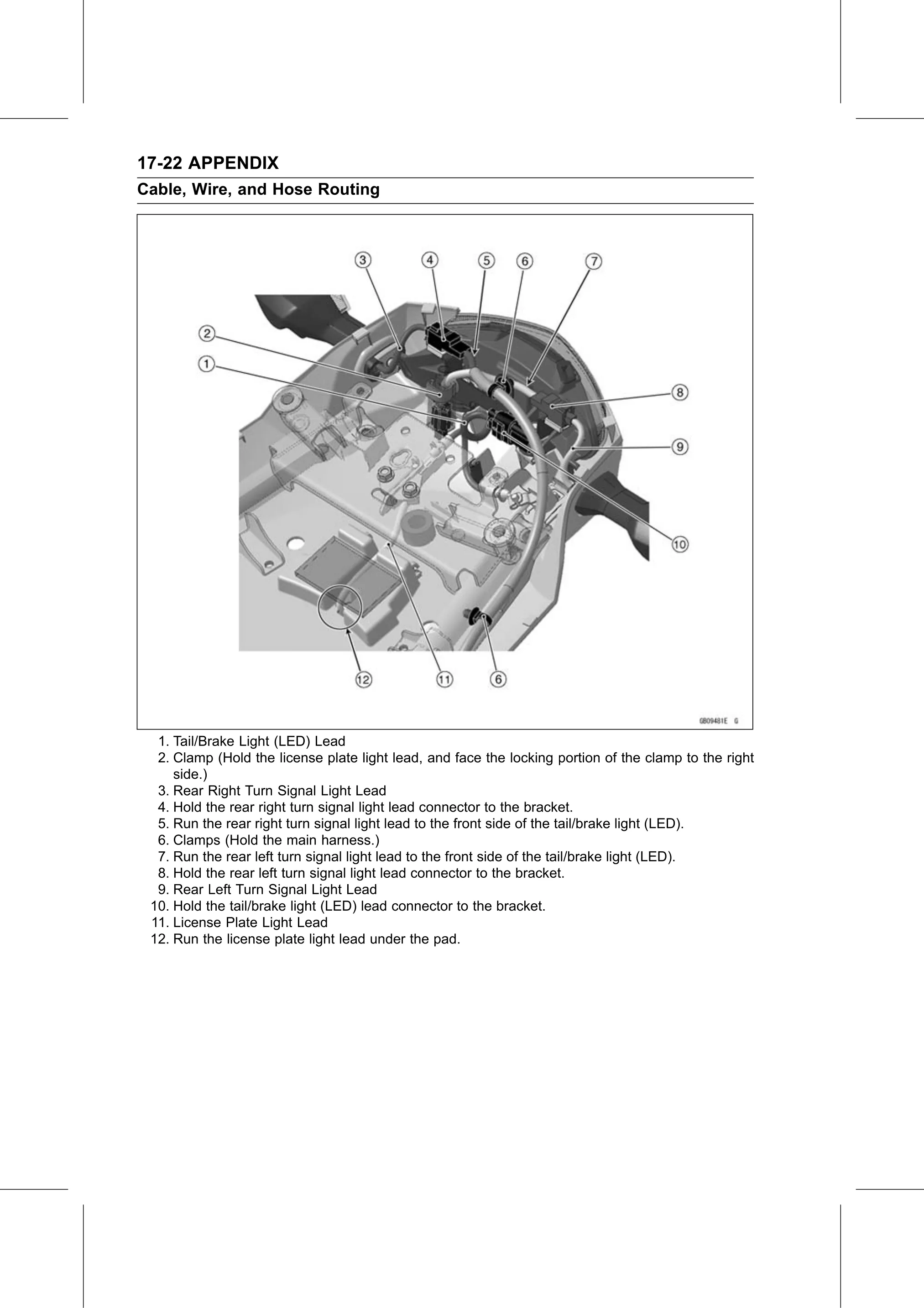

17-22 APPENDIX
Cable, Wire, and Hose Routing

  1. Tail/Brake Light (LED) Lead
  2. Clamp (Hold the license plate light lead, and face the locking portion of the clamp to the right
     side.)
  3. Rear Right Turn Signal Light Lead
  4. Hold the rear right turn signal light lead connector to the bracket.
  5. Run the rear right turn signal light lead to the front side of the tail/brake light (LED).
  6. Clamps (Hold the main harness.)
  7. Run the rear left turn signal light lead to the front side of the tail/brake light (LED).
  8. Hold the rear left turn signal light lead connector to the bracket.
  9. Rear Left Turn Signal Light Lead
 10. Hold the tail/brake light (LED) lead connector to the bracket.
 11. License Plate Light Lead
 12. Run the license plate light lead under the pad.
