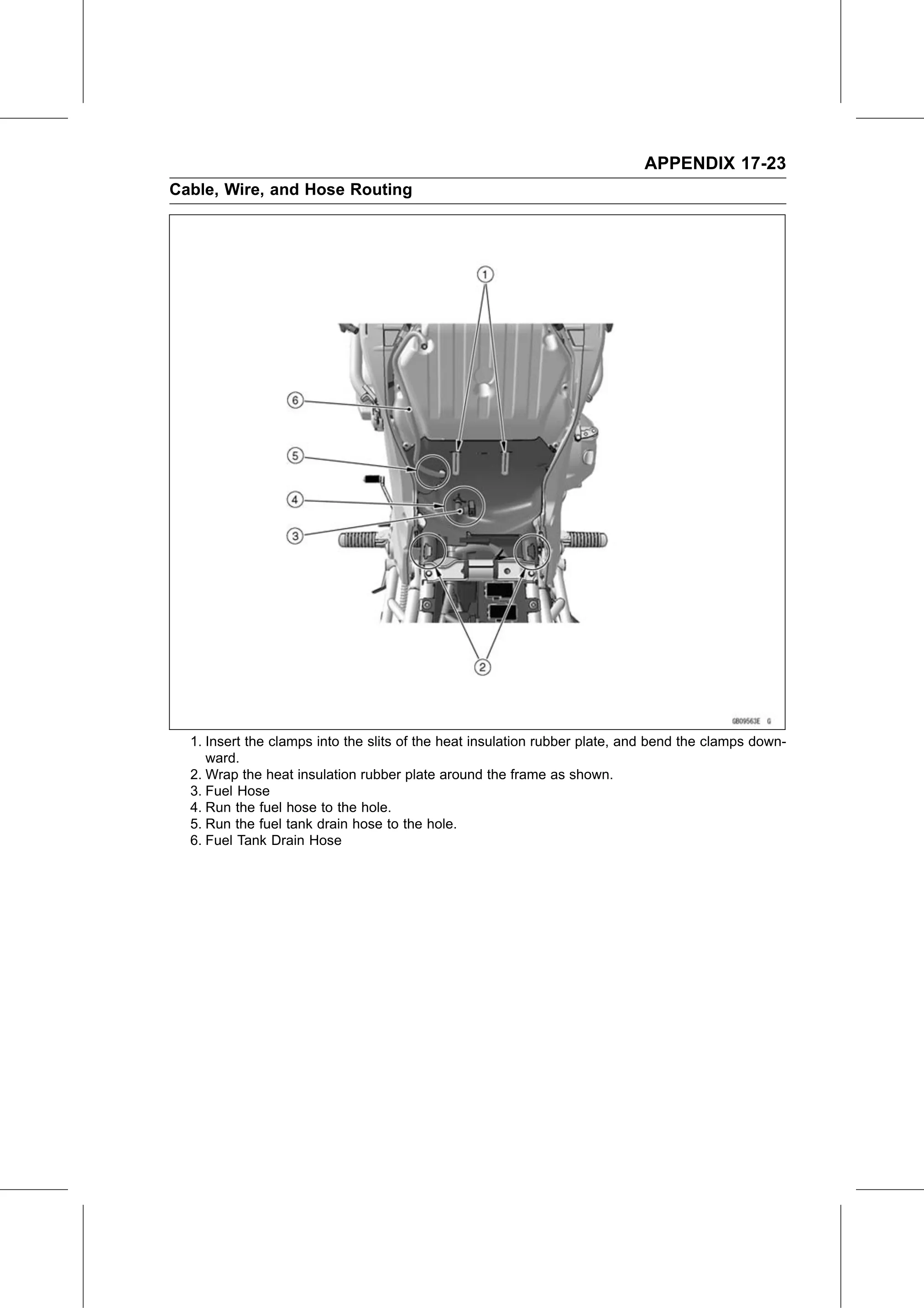

APPENDIX 17-23
Cable, Wire, and Hose Routing

  1. Insert the clamps into the slits of the heat insulation rubber plate, and bend the clamps down-
     ward.
  2. Wrap the heat insulation rubber plate around the frame as shown.
  3. Fuel Hose
  4. Run the fuel hose to the hole.
  5. Run the fuel tank drain hose to the hole.
  6. Fuel Tank Drain Hose
