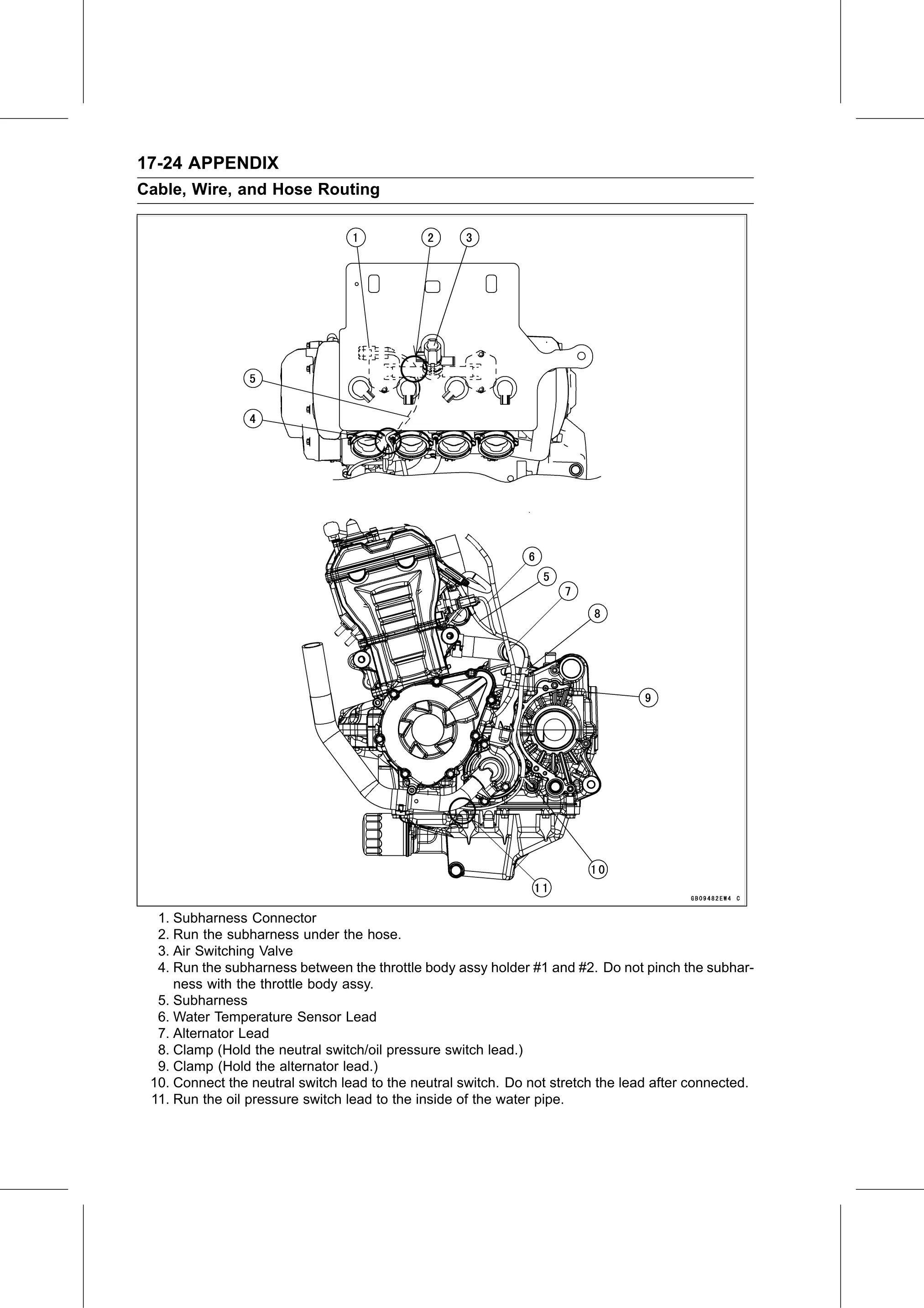

17-24 APPENDIX
Cable, Wire, and Hose Routing

  1. Subharness Connector
  2. Run the subharness under the hose.
  3. Air Switching Valve
  4. Run the subharness between the throttle body assy holder #1 and #2. Do not pinch the subhar-
     ness with the throttle body assy.
  5. Subharness
  6. Water Temperature Sensor Lead
  7. Alternator Lead
  8. Clamp (Hold the neutral switch/oil pressure switch lead.)
  9. Clamp (Hold the alternator lead.)
 10. Connect the neutral switch lead to the neutral switch. Do not stretch the lead after connected.
 11. Run the oil pressure switch lead to the inside of the water pipe.
