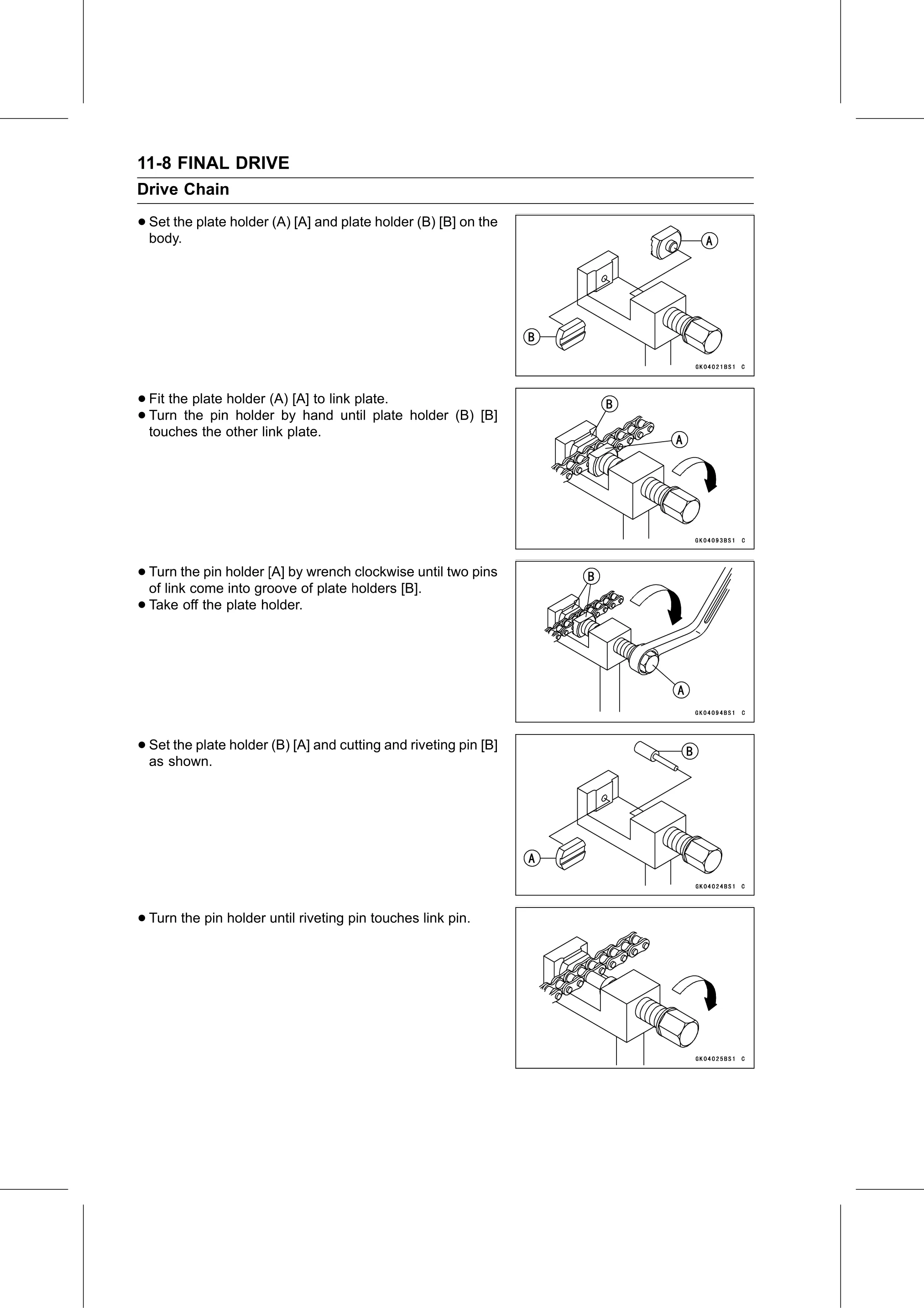

11-8 FINAL DRIVE
Drive Chain

• Set the plate holder (A) [A] and plate holder (B) [B] on the
  body.

• Fit the plate holder (A) [A] to link plate.
• touches
  Turn  the pin holder by hand until plate holder (B) [B]
            the other link plate.

• Turn  the pin holder [A] by wrench clockwise until two pins
  of link come into groove of plate holders [B].
• Take off the plate holder.

• Set the plate holder (B) [A] and cutting and riveting pin [B]
  as shown.

• Turn the pin holder until riveting pin touches link pin.
