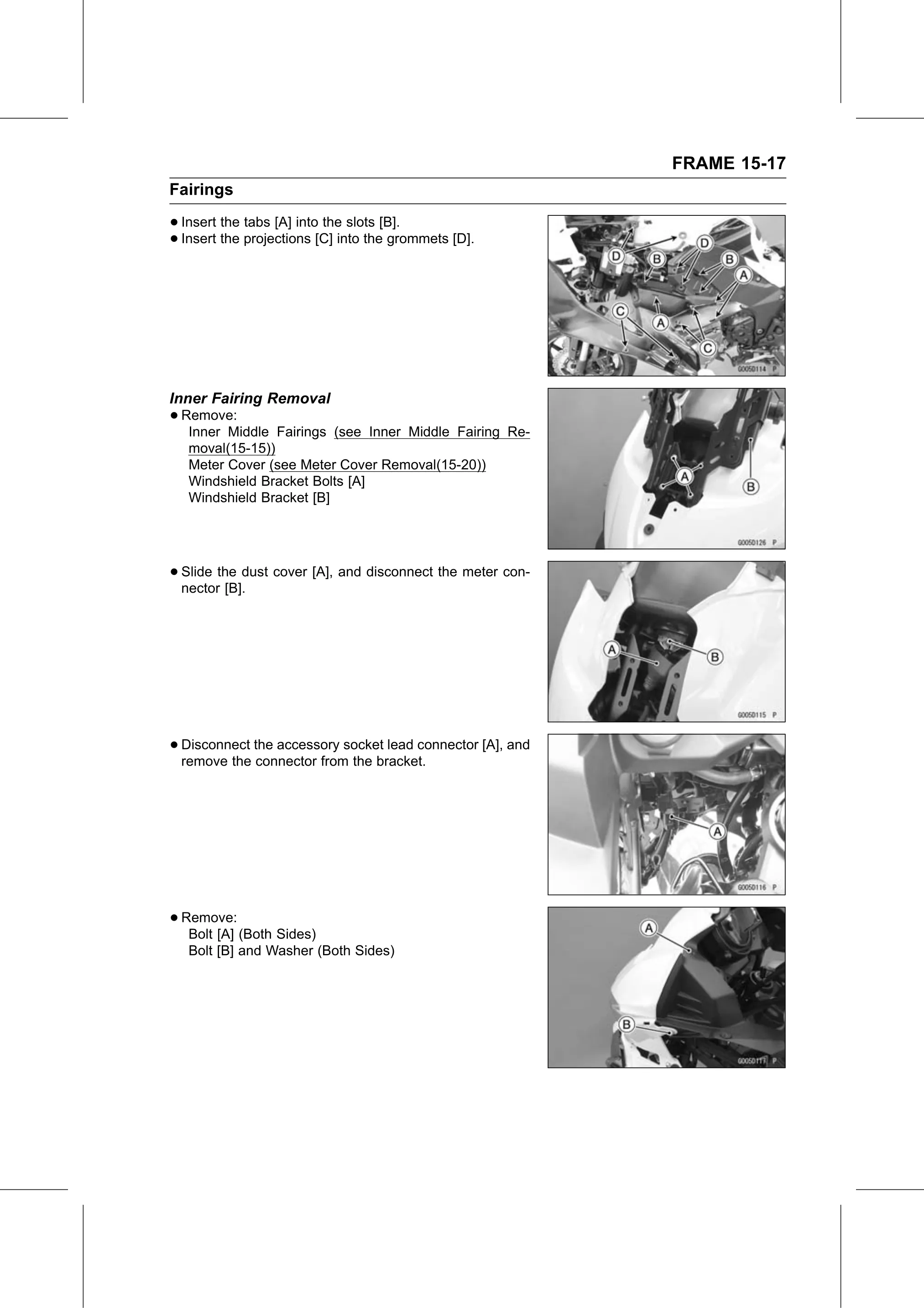

FRAME 15-17
Fairings

• Insert the tabs [A] into the slots [B].
• Insert the projections [C] into the grommets [D].

Inner Fairing Removal
• Remove:
   Inner Middle Fairings (see Inner Middle Fairing Re-
   moval(15-15))
   Meter Cover (see Meter Cover Removal(15-20))
   Windshield Bracket Bolts [A]
   Windshield Bracket [B]

• Slide the dust cover [A], and disconnect the meter con-
  nector [B].

• Disconnect the accessory socket lead connector [A], and
  remove the connector from the bracket.

• Remove:
   Bolt [A] (Both Sides)
   Bolt [B] and Washer (Both Sides)
