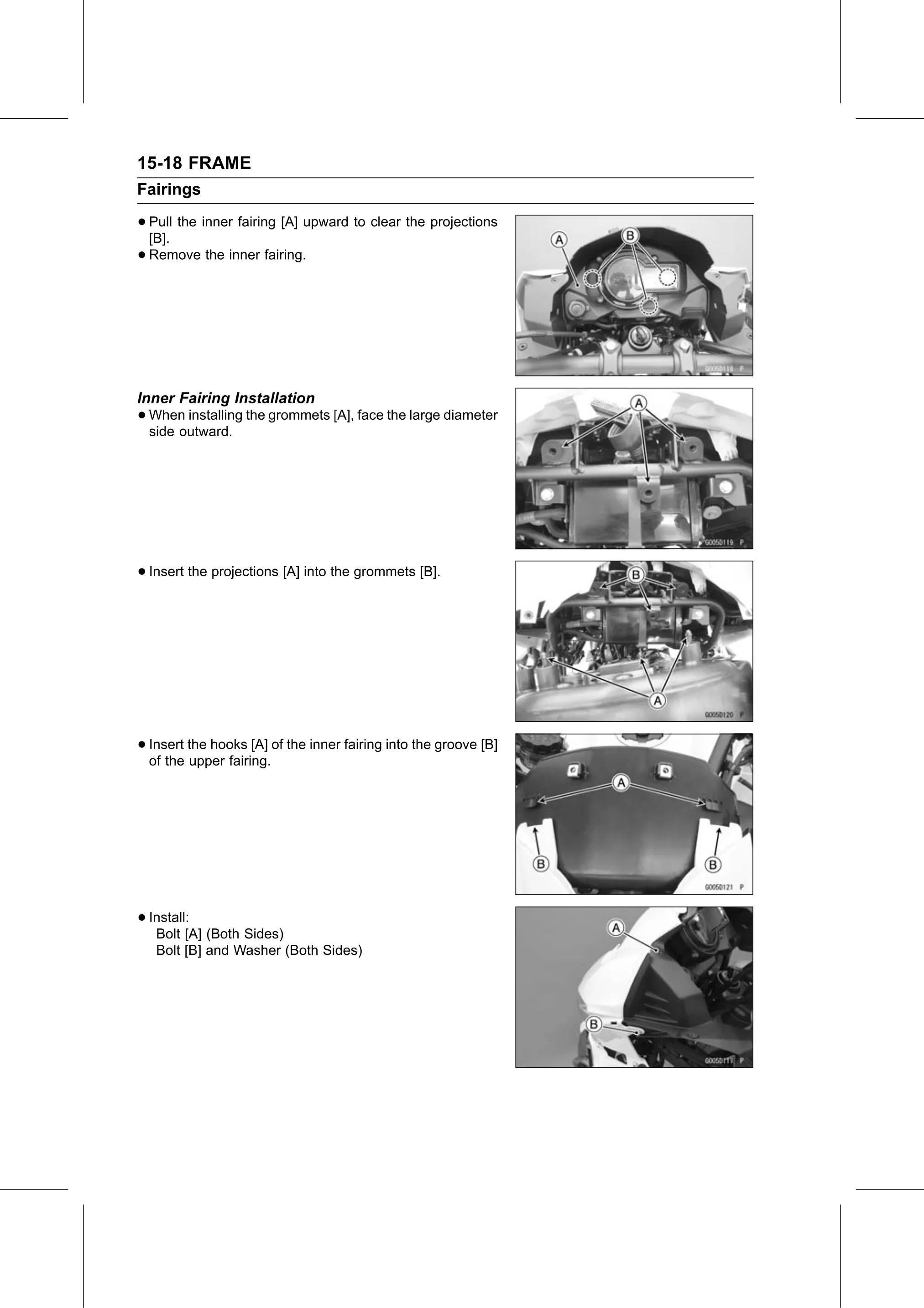

15-18 FRAME
Fairings

• Pull
  [B].
       the inner fairing [A] upward to clear the projections

• Remove the inner fairing.

Inner Fairing Installation
• When  installing the grommets [A], face the large diameter
  side outward.

• Insert the projections [A] into the grommets [B].

• Insert the hooks [A] of the inner fairing into the groove [B]
  of the upper fairing.

• Install:
   Bolt [A] (Both Sides)
   Bolt [B] and Washer (Both Sides)
