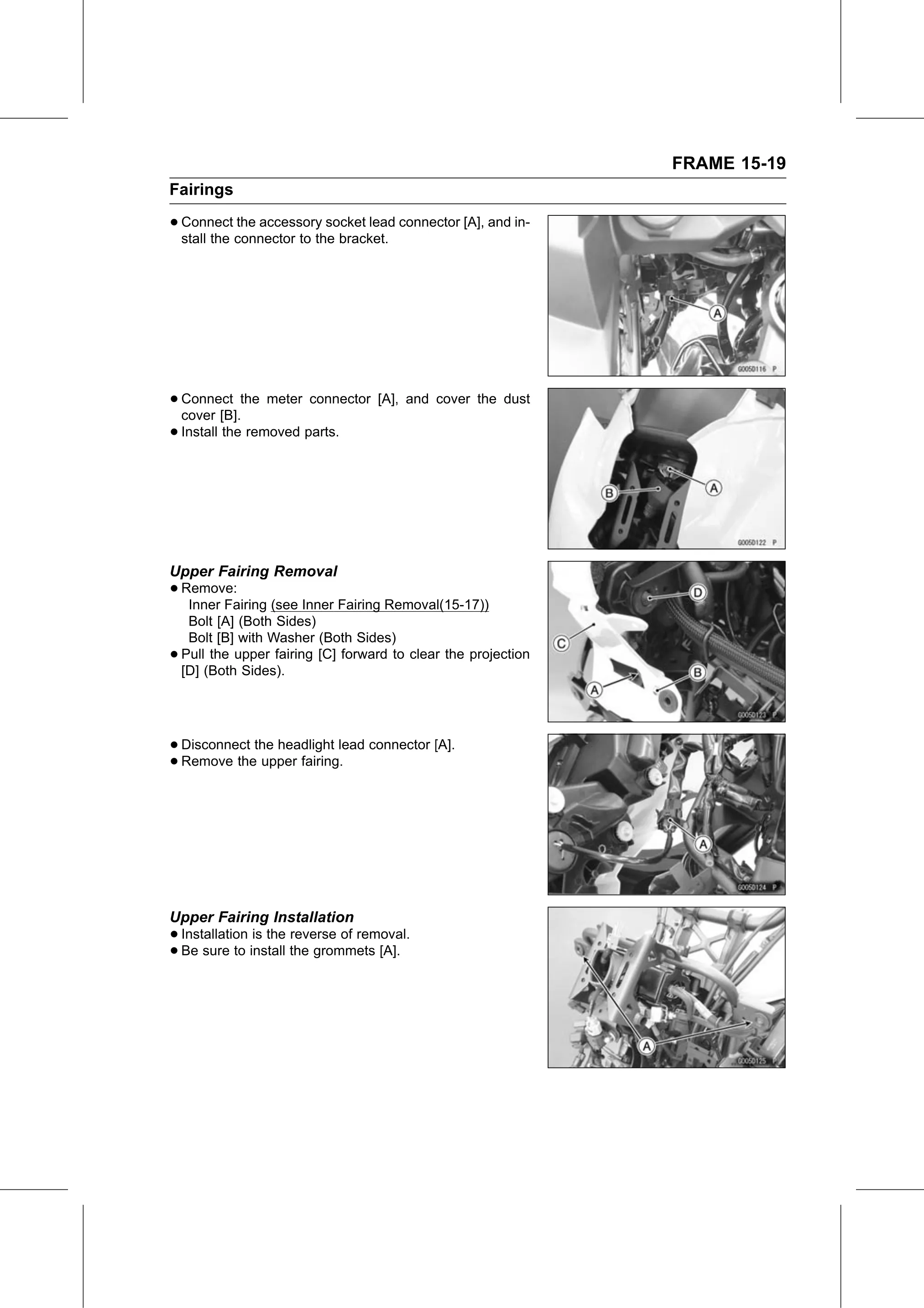

FRAME 15-19
Fairings

• Connect   the accessory socket lead connector [A], and in-
  stall the connector to the bracket.

• Connect
  cover [B].
             the meter connector [A], and cover the dust

• Install the removed parts.

Upper Fairing Removal
• Remove:
   Inner Fairing (see Inner Fairing Removal(15-17))
     Bolt [A] (Both Sides)
     Bolt [B] with Washer (Both Sides)
•   Pull the upper fairing [C] forward to clear the projection
    [D] (Both Sides).

• Disconnect the headlight lead connector [A].
• Remove the upper fairing.

Upper Fairing Installation
• Installation  is the reverse of removal.
• Be  sure  to install the grommets [A].
