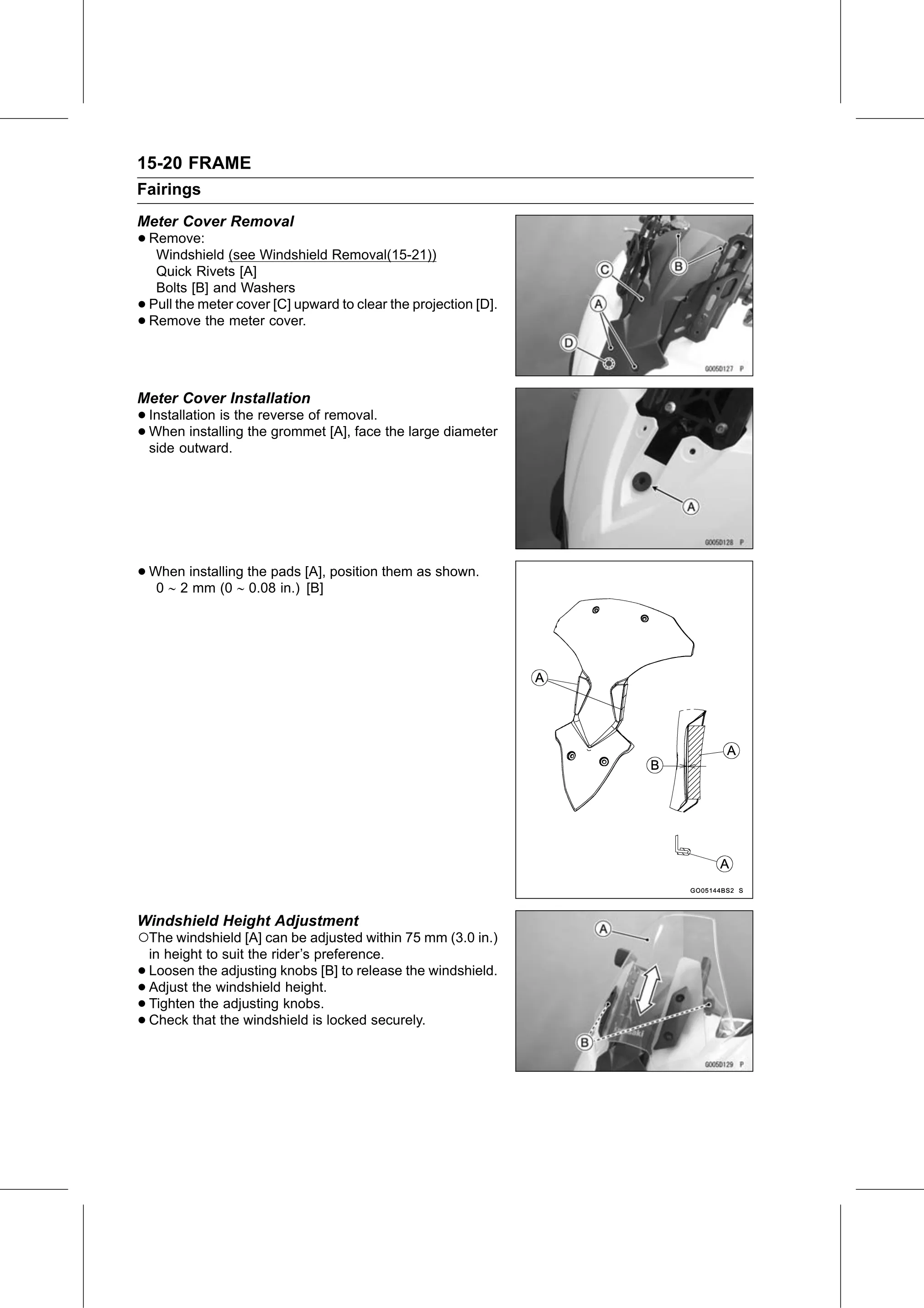

15-20 FRAME
Fairings
Meter Cover Removal
• Remove:
   Windshield (see Windshield Removal(15-21))
     Quick Rivets [A]
     Bolts [B] and Washers
•   Pull the meter cover [C] upward to clear the projection [D].
•   Remove the meter cover.

Meter Cover Installation
• Installation is the reverse of removal.
• When    installing the grommet [A], face the large diameter
  side outward.

• When  installing the pads [A], position them as shown.
   0  2 mm (0  0.08 in.) [B]

Windshield Height Adjustment
○The windshield [A] can be adjusted within 75 mm (3.0 in.)
    in height to suit the rider’s preference.
•   Loosen the adjusting knobs [B] to release the windshield.
•   Adjust the windshield height.
•   Tighten the adjusting knobs.
•   Check that the windshield is locked securely.
