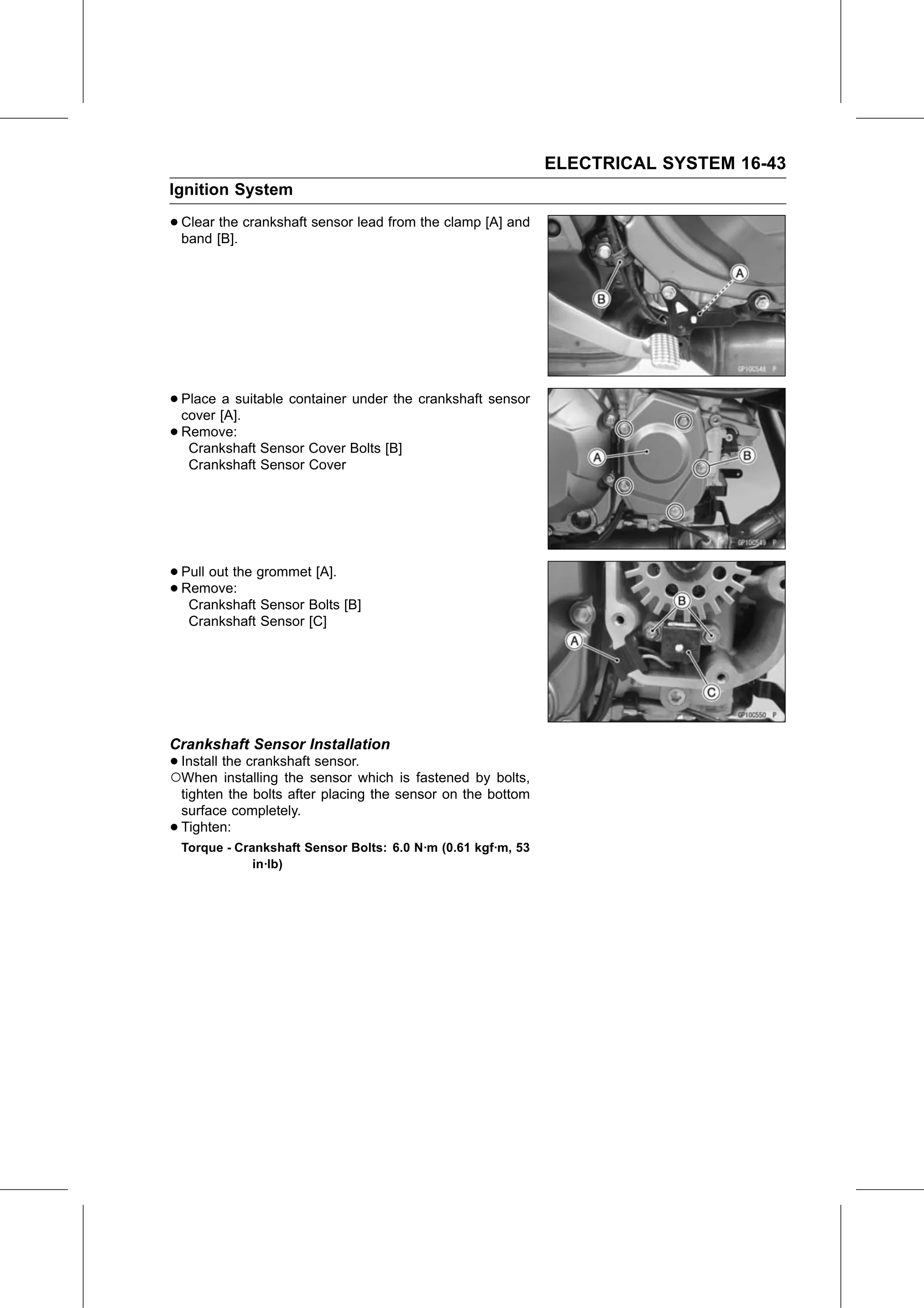

Service Manual (KLZ1000C) — page 525 of 762

Text on this page

ELECTRICAL SYSTEM 16-43
Ignition System

• Clear the crankshaft sensor lead from the clamp [A] and
  band [B].

• Place a suitable container under the crankshaft sensor
  cover [A].
• Remove:
   Crankshaft Sensor Cover Bolts [B]
     Crankshaft Sensor Cover

• Pull out the grommet [A].
• Crankshaft Sensor Bolts [B]
  Remove:

     Crankshaft Sensor [C]

Crankshaft Sensor Installation
•○Install the crankshaft sensor.
  When installing the sensor which is fastened by bolts,
    tighten the bolts after placing the sensor on the bottom
    surface completely.
•   Tighten:
    Torque - Crankshaft Sensor Bolts: 6.0 N·m (0.61 kgf·m, 53
                in·lb)
