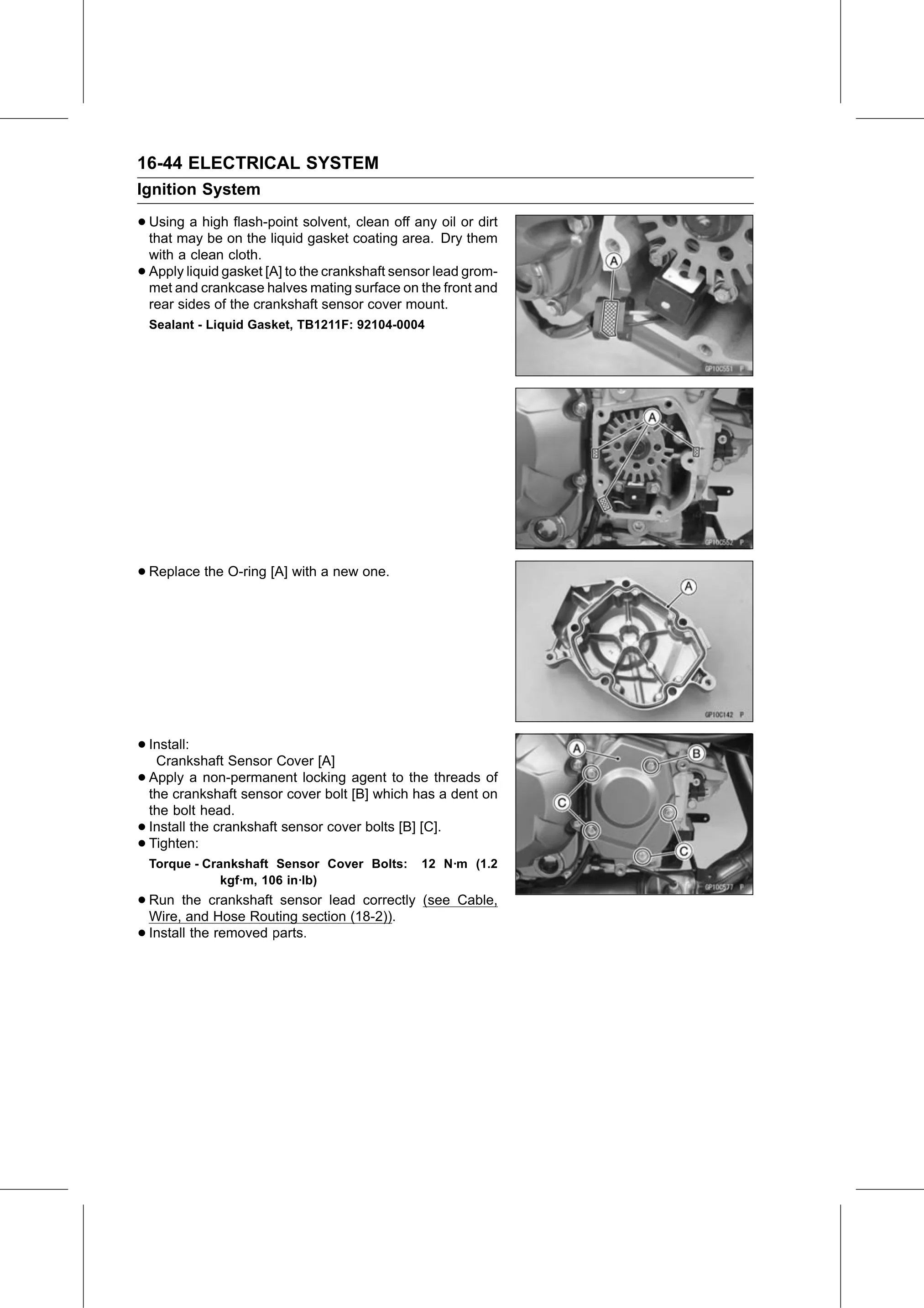

Service Manual (KLZ1000C) — page 526 of 762

Text on this page

16-44 ELECTRICAL SYSTEM
Ignition System

• Using a high flash-point solvent, clean off any oil or dirt
  that may be on the liquid gasket coating area. Dry them
    with a clean cloth.
•   Apply liquid gasket [A] to the crankshaft sensor lead grom-
    met and crankcase halves mating surface on the front and
    rear sides of the crankshaft sensor cover mount.
    Sealant - Liquid Gasket, TB1211F: 92104-0004

• Replace the O-ring [A] with a new one.

• Install:
   Crankshaft Sensor Cover [A]
• the crankshaft
  Apply    a non-permanent locking agent to the threads of
                  sensor cover bolt [B] which has a dent on
    the bolt head.
•   Install the crankshaft sensor cover bolts [B] [C].
•   Tighten:
    Torque - Crankshaft Sensor Cover Bolts:       12 N·m (1.2
                kgf·m, 106 in·lb)
• Run   the crankshaft sensor lead correctly (see Cable,
  Wire, and Hose Routing section (18-2)).
• Install the removed parts.
