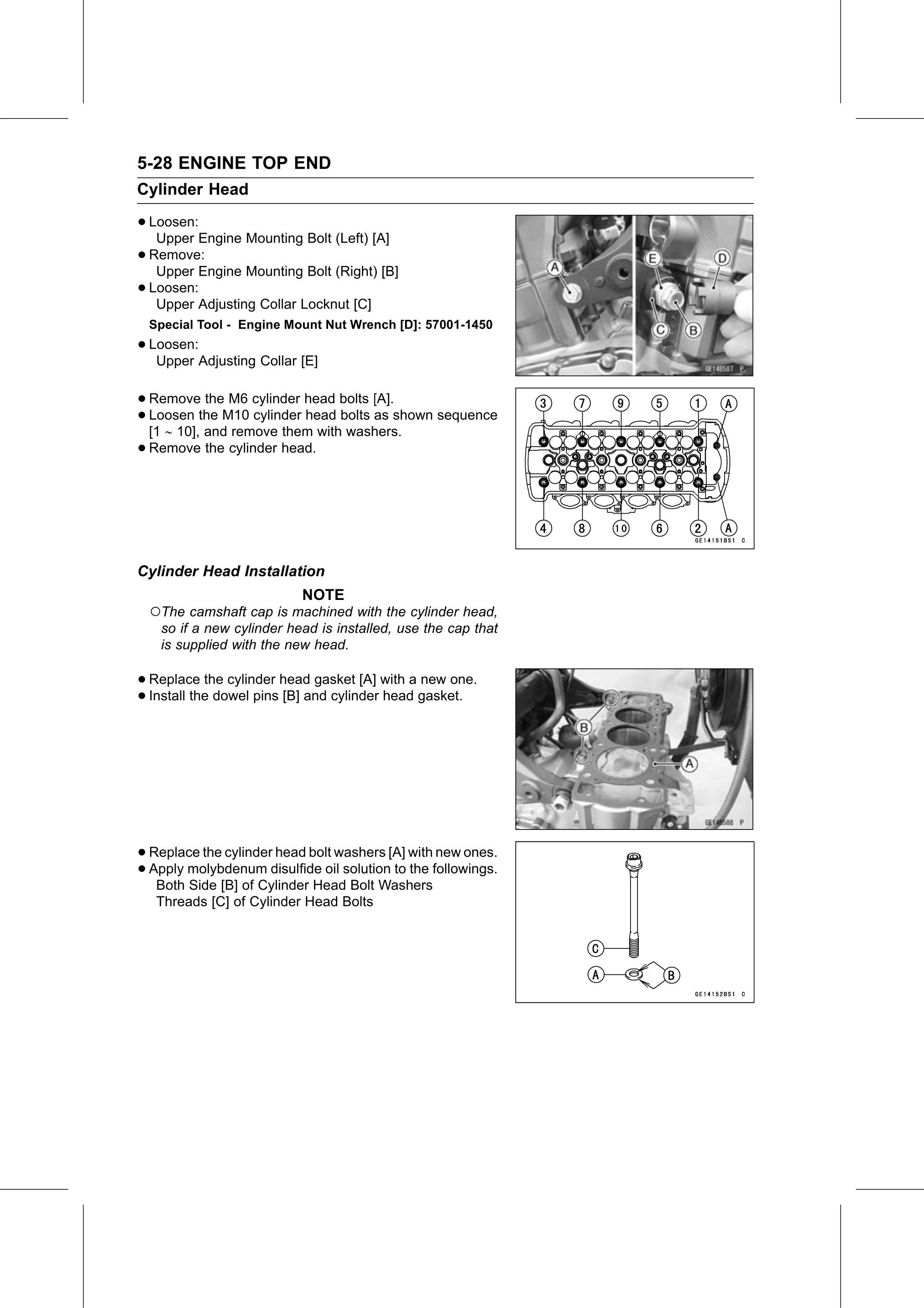

5-28 ENGINE TOP END
Cylinder Head

• Loosen:
   Upper Engine Mounting Bolt (Left) [A]
• Remove:
   Upper Engine Mounting Bolt (Right) [B]
• Upper Adjusting Collar Locknut [C]
  Loosen:

  Special Tool - Engine Mount Nut Wrench [D]: 57001-1450
• Loosen:
   Upper Adjusting Collar [E]

• Remove    the M6 cylinder head bolts [A].
• [1 ∼ 10], andM10
  Loosen   the       cylinder head bolts as shown sequence
                remove them with washers.
• Remove    the cylinder  head.

Cylinder Head Installation
                            NOTE
  ○The camshaft cap is machined with the cylinder head,
    so if a new cylinder head is installed, use the cap that
    is supplied with the new head.

• Replace   the cylinder head gasket [A] with a new one.
• Install the dowel pins [B] and cylinder head gasket.

• Replace the cylinder head bolt washers [A] with new ones.
• Both Side [B] of Cylinder
  Apply molybdenum    disulfide oil solution to the followings.
                              Head Bolt Washers
   Threads [C] of Cylinder Head Bolts
