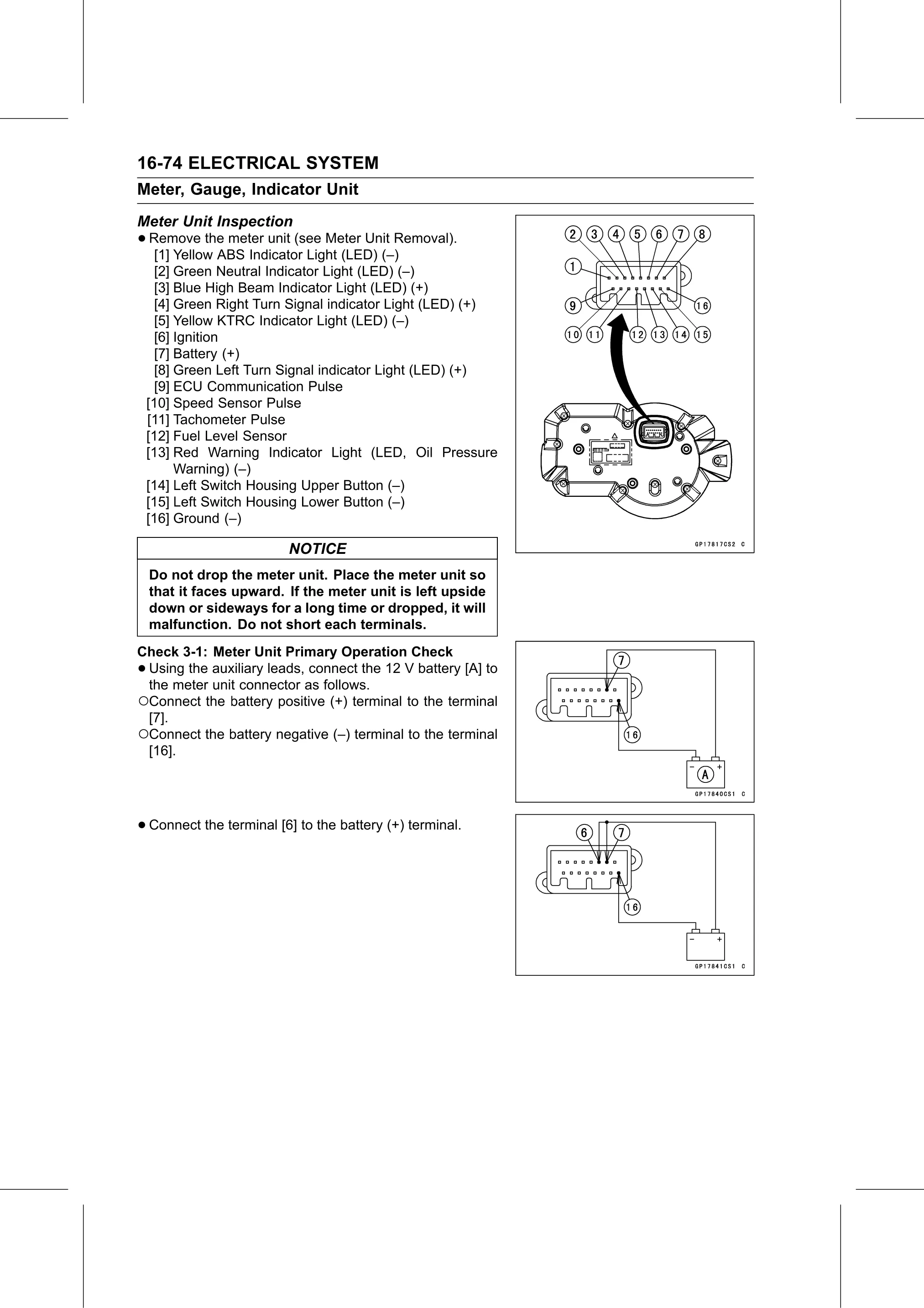

16-74 ELECTRICAL SYSTEM
Meter, Gauge, Indicator Unit
Meter Unit Inspection
• Remove    the meter unit (see Meter Unit Removal).
   [1] Yellow ABS Indicator Light (LED) (–)
   [2] Green Neutral Indicator Light (LED) (–)
   [3] Blue High Beam Indicator Light (LED) (+)
   [4] Green Right Turn Signal indicator Light (LED) (+)
   [5] Yellow KTRC Indicator Light (LED) (–)
   [6] Ignition
   [7] Battery (+)
   [8] Green Left Turn Signal indicator Light (LED) (+)
   [9] ECU Communication Pulse
 [10] Speed Sensor Pulse
 [11] Tachometer Pulse
 [12] Fuel Level Sensor
 [13] Red Warning Indicator Light (LED, Oil Pressure
       Warning) (–)
 [14] Left Switch Housing Upper Button (–)
 [15] Left Switch Housing Lower Button (–)
 [16] Ground (–)

                          NOTICE
    Do not drop the meter unit. Place the meter unit so
    that it faces upward. If the meter unit is left upside
    down or sideways for a long time or dropped, it will
    malfunction. Do not short each terminals.
Check 3-1: Meter Unit Primary Operation Check
•Using the auxiliary leads, connect the 12 V battery [A] to
 the meter unit connector as follows.
○Connect the battery positive (+) terminal to the terminal
 [7].
○Connect the battery negative (–) terminal to the terminal
 [16].

• Connect the terminal [6] to the battery (+) terminal.
