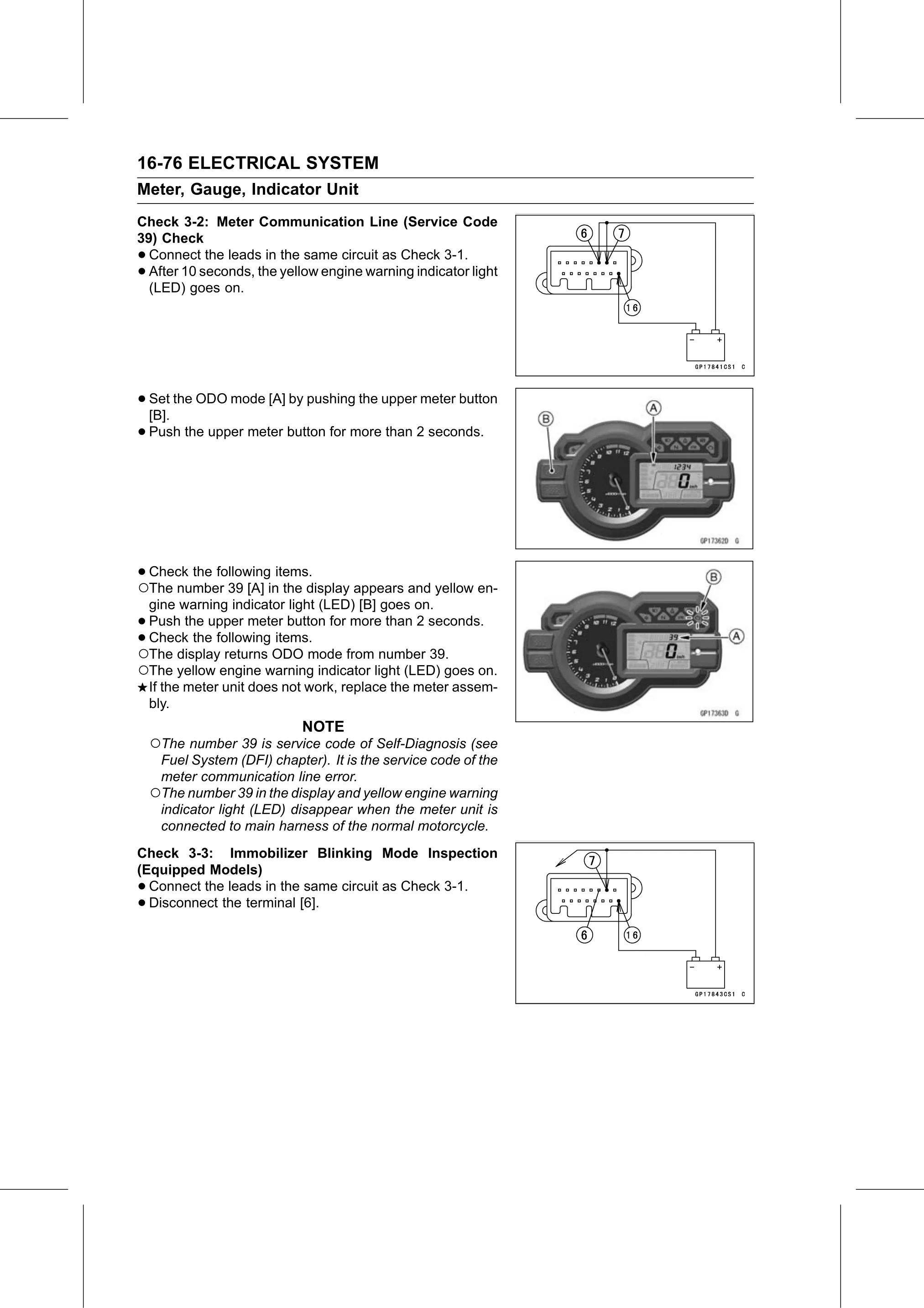

16-76 ELECTRICAL SYSTEM
Meter, Gauge, Indicator Unit
Check 3-2: Meter Communication Line (Service Code
39) Check
• Connect the leads in the same circuit as Check 3-1.
• After 10 seconds, the yellow engine warning indicator light
  (LED) goes on.

• Set
  [B].
       the ODO mode [A] by pushing the upper meter button

• Push the upper meter button for more than 2 seconds.

•○Check the following items.
  The number 39 [A] in the display appears and yellow en-
 gine warning indicator light (LED) [B] goes on.
•Push the upper meter button for more than 2 seconds.
•Check the following items.
○The display returns ODO mode from number 39.
○The yellow engine warning indicator light (LED) goes on.
 If the meter unit does not work, replace the meter assem-
 bly.
                             NOTE
    ○The number 39 is service code of Self-Diagnosis (see
     Fuel System (DFI) chapter). It is the service code of the
     meter communication line error.
    ○The number 39 in the display and yellow engine warning
     indicator light (LED) disappear when the meter unit is
     connected to main harness of the normal motorcycle.
Check 3-3: Immobilizer Blinking Mode Inspection
(Equipped Models)
• Connect the leads in the same circuit as Check 3-1.
• Disconnect the terminal [6].
